SKU: HK3020LL/3AS-NTN

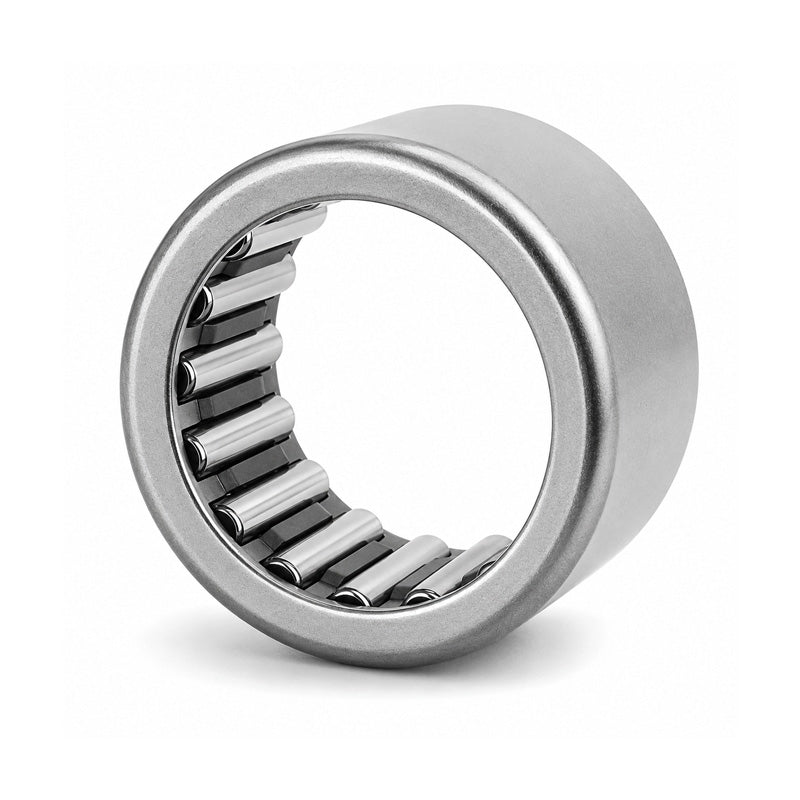

NTN HK3020LL/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x20mm
NTN HK3020LL/3AS Drawn Cup Needle Roller Bearing with Open End 30x37x20mm
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
3+
€7,16
4+
€6,75
9+
€6,67
19+
€6,59
49+
€6,51
99+
€6,43
499+
€6,03
999+
€5,95
1999+
€5,87
2999+
€5,79
4999+
€5,63
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C2 - Width of drawn cup LL | 20mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR25X30X23 |
| Cr - Dynamic load rating | 18.1 kN |
| C0r - Static load rating | 30 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
