SKU: HK5025-EU

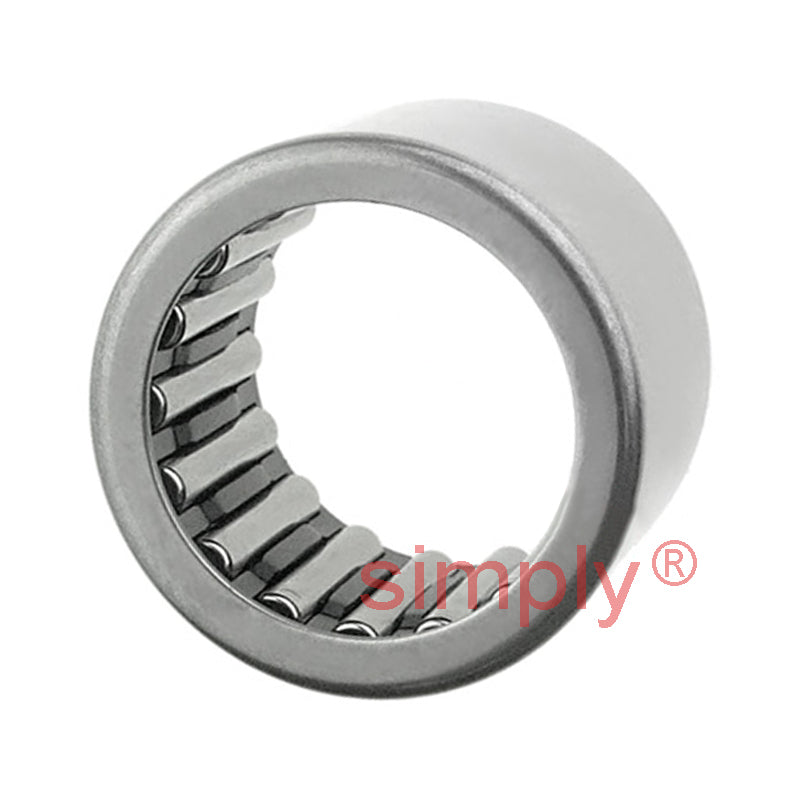

HK5025 Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x25mm
HK5025 Budget Drawn Cup Type Needle Roller Bearing Open End Type 50x58x25mm
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
Equivalent to: TLA5025Z RHNA505825
In stock
Price Break
10+
€10,40
19+
€9,82
29+
€9,70
39+
€9,58
49+
€9,47
74+
€9,35
99+
€8,77
199+
€8,65
249+
€8,53
499+
€8,41
999+
€8,18
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA5025Z RHNA505825
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 58mm
- Width:
- 25mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 58mm |
| C | 25mm |
| Dynamic load C | 36900 N |
| Static load Co | 85000 N |
| Fatigue load limit Pu | 10600 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| r1r2 min | 0.8mm |
| Da max | 53mm |
| ra max | 0.8mm |
| Inner ring | LR45x50x25.5 |
| Seal | G/SD50x58x4 |
| Weight | 90 g |
