SKU: HK6012-MB

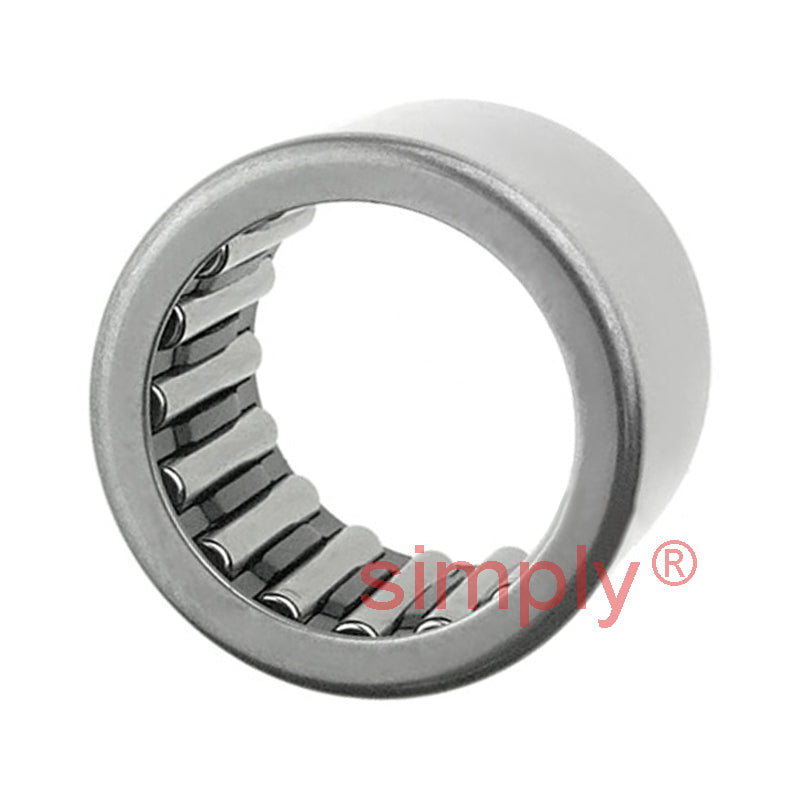

Major Brand HK6012 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x12mm
Major Brand HK6012 Drawn Cup Type Needle Roller Bearing with Two Open Ends 60x68x12mm
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
10+
€7,85
19+
€7,41
29+
€7,32
39+
€7,23
49+
€7,14
74+
€7,06
99+
€6,62
199+
€6,53
249+
€6,44
499+
€6,35
999+
€6,17
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 68mm
- Width:
- 12mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 68mm |
| C | 12mm |
| Dynamic load | 17600 N |
| Static load | 32000 N |
| Fatigue load limit Pu | 3800 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| r1r2 min | 0.8mm |
| Da max | 63mm |
| ra max | 0.8mm |
| Weight | 49 g |
