SKU: HMK1616-NTN

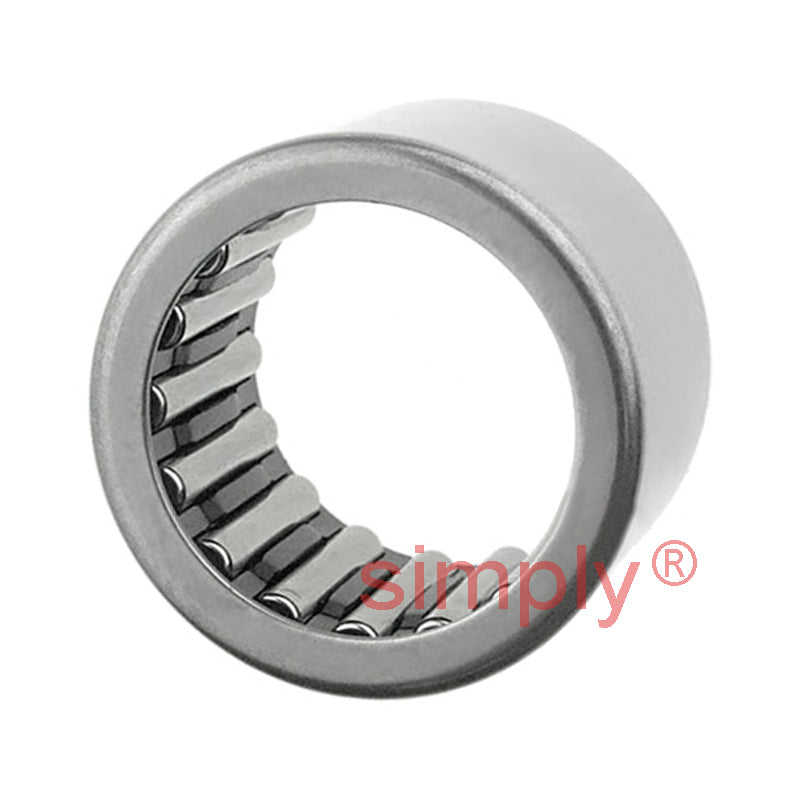

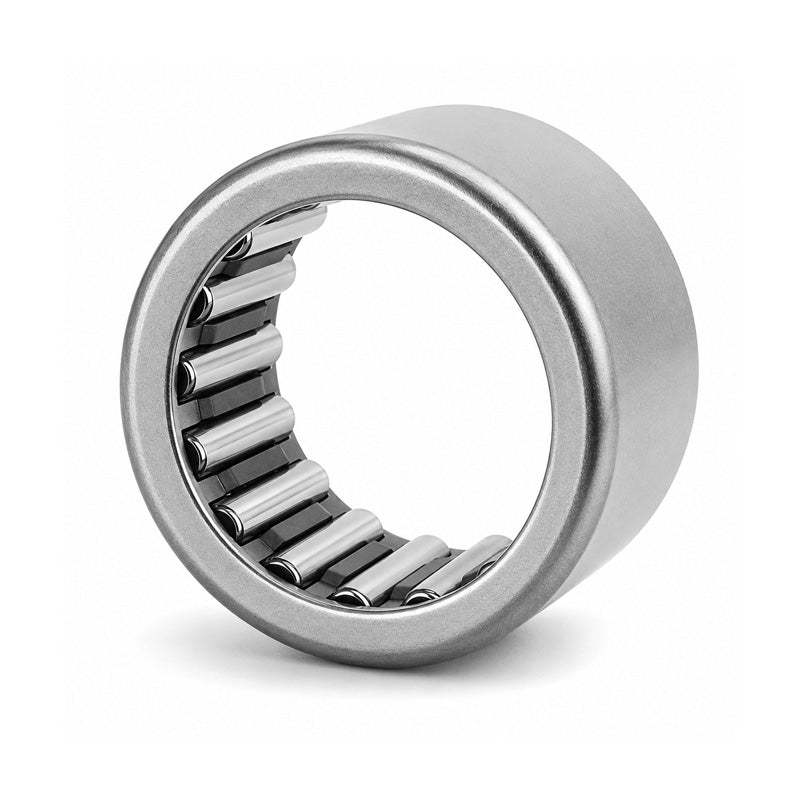

NTN HMK1616 Drawn Cup Needle Roller Bearing with Open End 16x24x16mm - Allow 2-3 Days
NTN HMK1616 Drawn Cup Needle Roller Bearing with Open End 16x24x16mm - Allow 2-3 Days
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
3+
€5,88
4+
€5,55
9+
€5,49
19+
€5,42
49+
€5,35
99+
€5,29
499+
€4,96
999+
€4,89
1999+
€4,83
2999+
€4,76
4999+
€4,63
Share this product
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 16mm |
|---|---|
| D - Outside diameter | 24mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X16X20 |
| Cr - Dynamic load rating | 12.4 kN |
| C0r - Static load rating | 13.5 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| N - Oil lubrication limit speed | 15000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
