SKU: HMV-25-EBF-HN-SNR

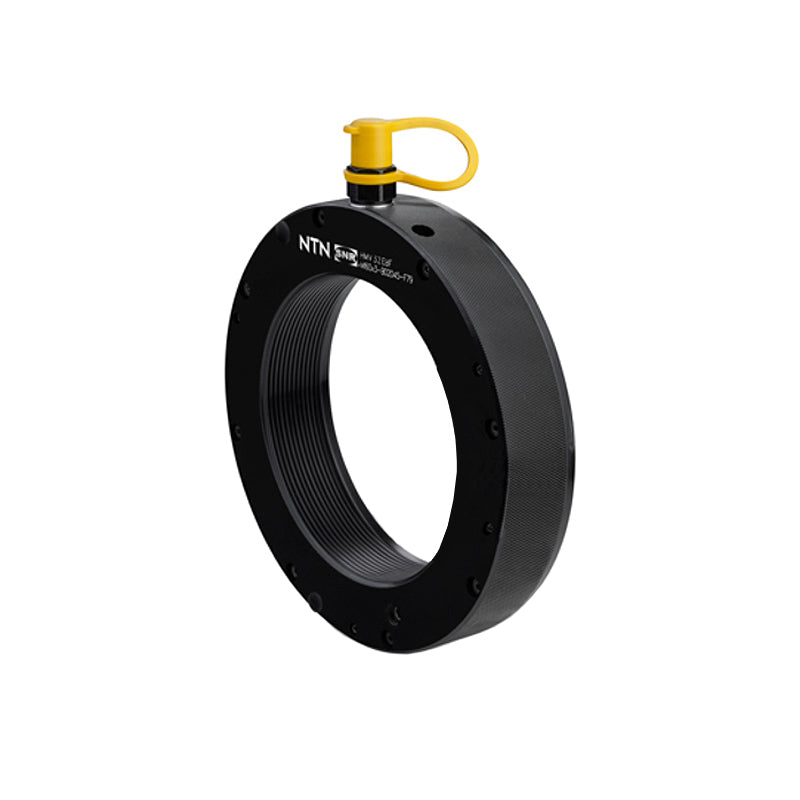

SNR HMV25 Metric Hydraulic Nut with M125x2 Thread - Allow 2-3 Days
SNR HMV25 Metric Hydraulic Nut with M125x2 Thread - Allow 2-3 Days
Regular price
€1.376,29
ex VAT
Regular price
Sale price
€1.376,29
ex VAT
In stock
Price Break
10+
€1.224,90
19+
€1.156,08
29+
€1.142,32
39+
€1.128,56
49+
€1.114,79
74+
€1.101,03
99+
€1.032,22
199+
€1.018,45
249+
€1.004,69
499+
€990,93
999+
€963,40
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M125x2
- Inside Diameter:
- 125.5mm
- Outside Diameter:
- 192mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV25 |
|---|---|
| Thread G | M125x2 |
| Outside Diameter D | 192mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 188mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 125.5mm |
| Piston Surface Area | 6350mm2 |
| Weight | 5.6kg |
