SKU: HMV-29-EBF-HN-SNR

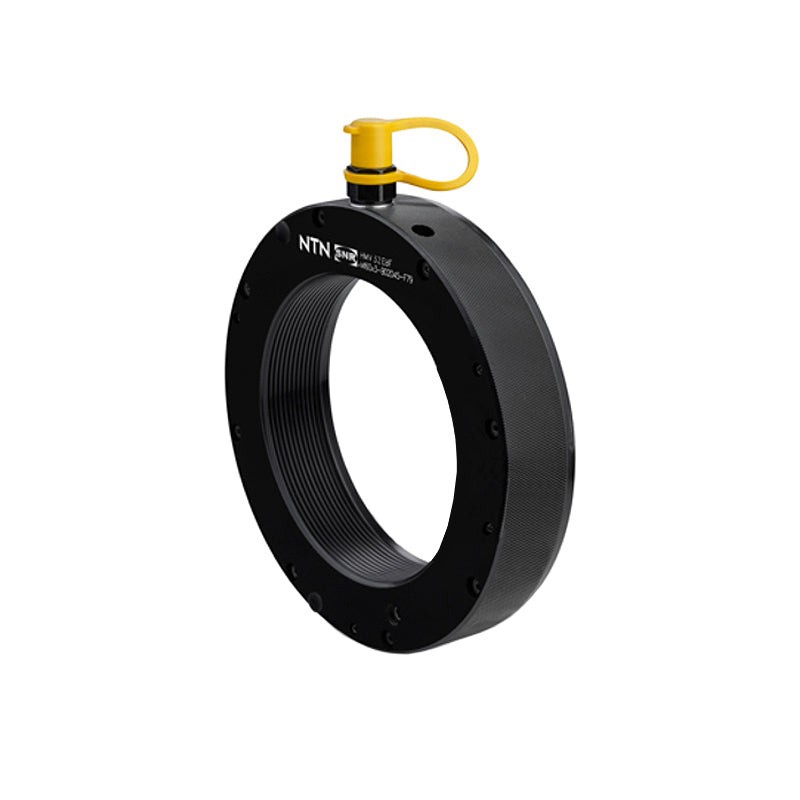

SNR HMV29 Metric Hydraulic Nut with M145x2 Thread - Allow 2-3 Days
SNR HMV29 Metric Hydraulic Nut with M145x2 Thread - Allow 2-3 Days
Regular price
€1.529,63
ex VAT
Regular price
Sale price
€1.529,63
ex VAT
In stock
Price Break
10+
€1.361,37
19+
€1.284,89
29+
€1.269,59
39+
€1.254,30
49+
€1.239,00
74+
€1.223,70
99+
€1.147,22
199+
€1.131,93
249+
€1.116,63
499+
€1.101,33
999+
€1.070,74
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M145x2
- Inside Diameter:
- 145.5mm
- Outside Diameter:
- 214mm
- Width:
- 46mm
- Flange Width:
- 7mm
Technical
Technical
| HMV | HMV29 |
|---|---|
| Thread G | M145x2 |
| Outside Diameter D | 214mm |
| Total Width B | 46mm |
| Piston Diameter max. d2 | 210mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 7mm |
| Body Width B2 | 39mm |
| Diameter d1 | 145.5mm |
| Piston Surface Area | 7400mm2 |
| Weight | 6.7kg |
