SKU: HMV-38-EBF-HN-SNR

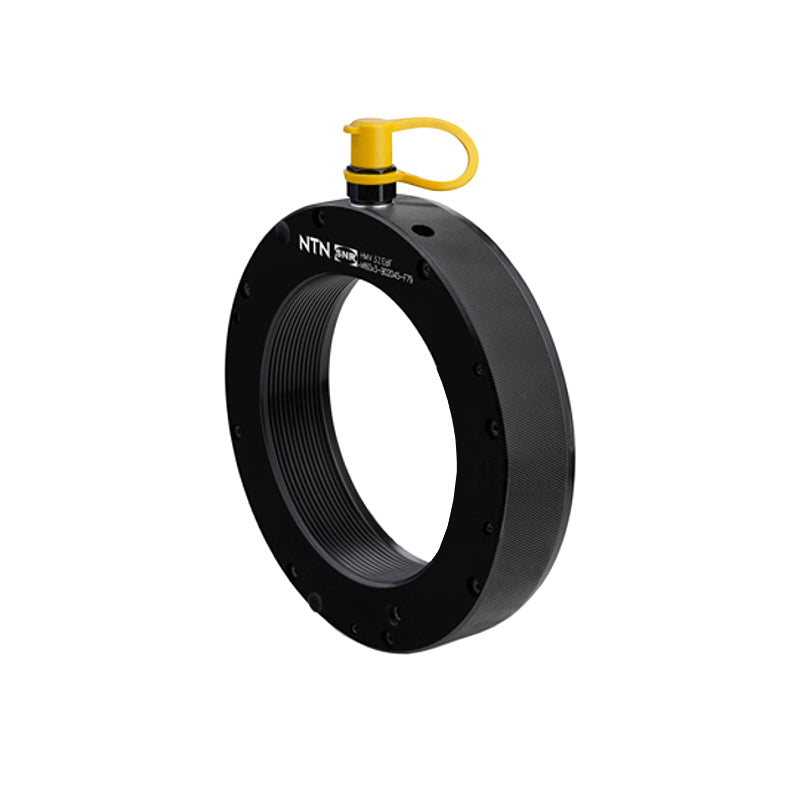

SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
SNR HMV38 Metric Hydraulic Nut with M190x3 Thread - Allow 2-3 Days
Regular price
€2.150,58
ex VAT
Regular price
Sale price
€2.150,58
ex VAT
In stock
Price Break
10+
€1.914,02
19+
€1.806,49
29+
€1.784,98
39+
€1.763,48
49+
€1.741,97
74+
€1.720,46
99+
€1.612,94
199+
€1.591,43
249+
€1.569,92
499+
€1.548,42
999+
€1.505,41
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M190x3
- Inside Diameter:
- 191mm
- Outside Diameter:
- 270mm
- Width:
- 50mm
- Flange Width:
- 8mm
Technical
Technical
| HMV | HMV38 |
|---|---|
| Thread G | M190x3 |
| Outside Diameter D | 270mm |
| Total Width B | 50mm |
| Piston Diameter max. d2 | 266mm |
| Permitted Piston Stroke | 7mm |
| Flange Width B1 | 8mm |
| Body Width B2 | 42mm |
| Diameter d1 | 191mm |
| Piston Surface Area | 11800mm2 |
| Weight | 10.7kg |
