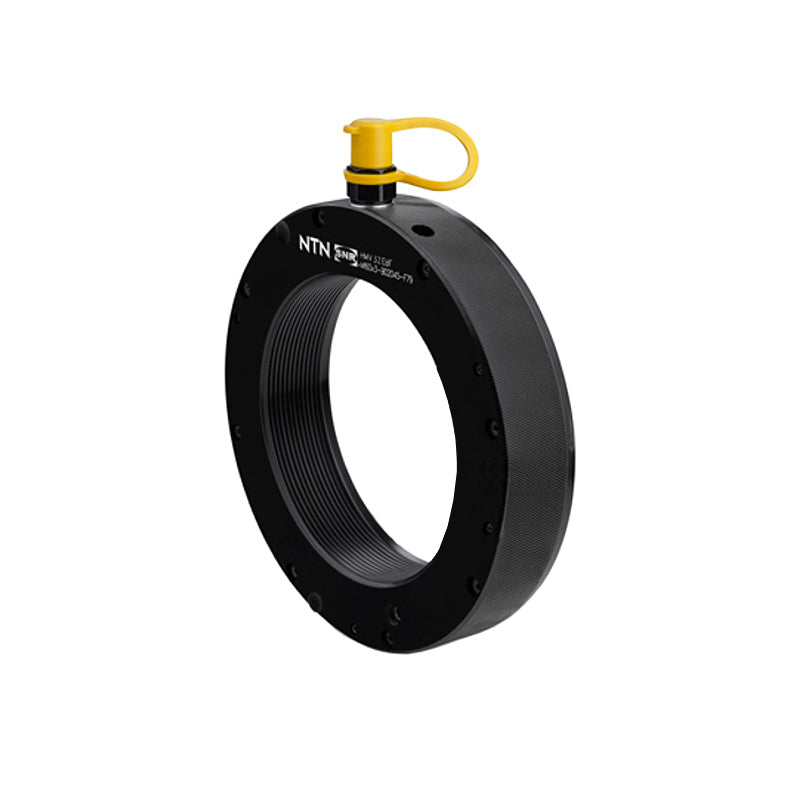

SNR HMV56 Metric Hydraulic Nut with Tr280x4 Thread - Allow 2-3 Days
SNR HMV56 Metric Hydraulic Nut with Tr280x4 Thread - Allow 2-3 Days
Regular price
€3.208,95
ex VAT
Regular price
Sale price
€3.208,95
ex VAT
In stock
Price Break
3+
€2.443,89
5+
€2.306,59
9+
€2.279,13
19+
€2.251,67
49+
€2.224,21
74+
€2.196,75
99+
€2.059,45
199+
€2.031,99
249+
€2.004,54
499+
€1.977,08
999+
€1.922,16
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr280x4
- Inside Diameter:
- 282mm
- Outside Diameter:
- 380mm
- Width:
- 58mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV56 |
|---|---|
| Thread G | Tr280x4 |
| Outside Diameter D | 380mm |
| Total Width B | 58mm |
| Piston Diameter max. d2 | 376mm |
| Permitted Piston Stroke | 12mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 49mm |
| Diameter d1 | 282mm |
| Piston Surface Area | 21050mm2 |
| Weight | 22.2kg |
