SKU: HMV20E-BGL

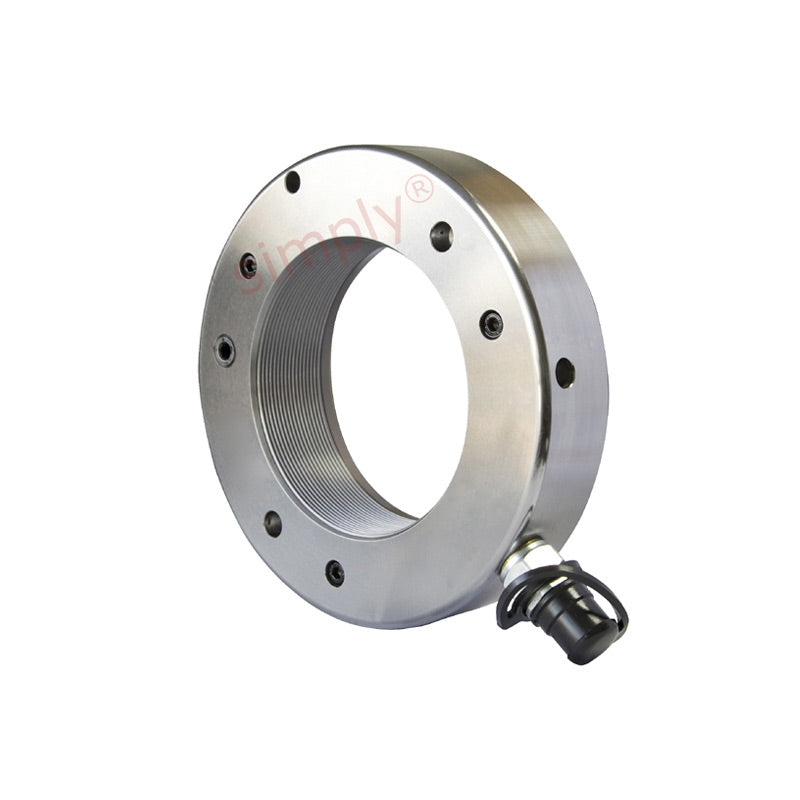

BGL HMV20E Metric Hydraulic Nut M100x2 Thread - Allow 1-2 Days
BGL HMV20E Metric Hydraulic Nut M100x2 Thread - Allow 1-2 Days
Regular price
€1.144,88
ex VAT
Regular price
Sale price
€1.144,88
ex VAT
In stock
Price Break
10+
€1.018,94
19+
€961,70
29+
€950,25
39+
€938,80
49+
€927,35
74+
€915,90
99+
€858,66
199+
€847,21
249+
€835,76
499+
€824,31
999+
€801,42
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M100x2
- Inside Diameter:
- 100.5mm
- Outside Diameter:
- 166mm
- Width:
- 38mm
- Flange Width:
- 6mm
Technical
Technical
| G Thread | M100x2 |
|---|---|
| d1 | 100.5mm |
| d2 | 158mm |
| d3 | 166mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 5100mm2 |
