SKU: HMV34E-BGL

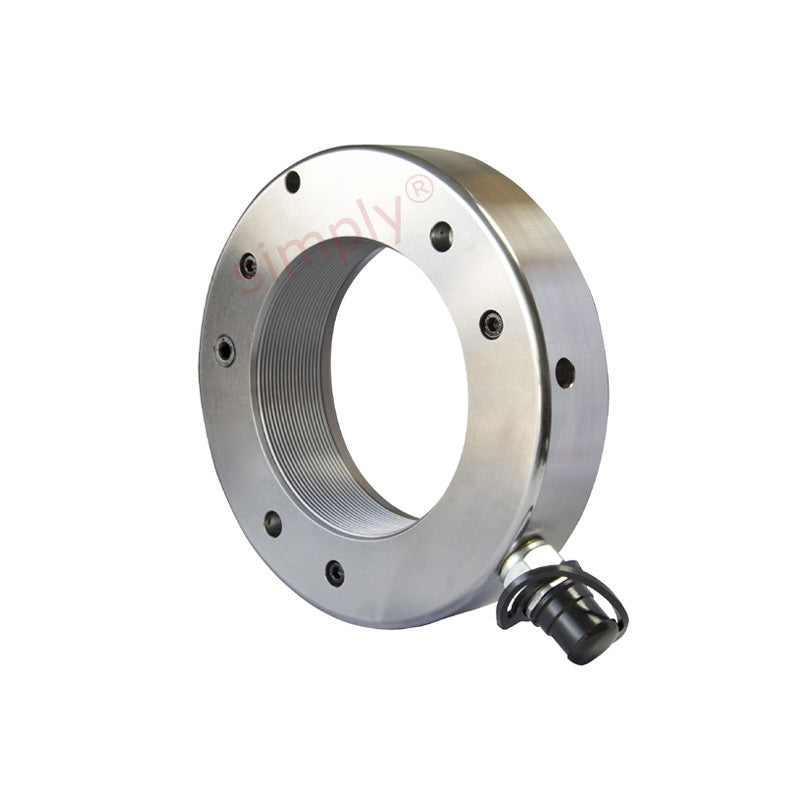

BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
Regular price
€1.604,27
ex VAT
Regular price
Sale price
€1.604,27
ex VAT
In stock
Price Break
10+
€1.427,80
19+
€1.347,59
29+
€1.331,54
39+
€1.315,50
49+
€1.299,46
74+
€1.283,42
99+
€1.203,20
199+
€1.187,16
249+
€1.171,12
499+
€1.155,07
999+
€1.122,99
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M170x3
- Inside Diameter:
- 170.5mm
- Outside Diameter:
- 244mm
- Width:
- 41mm
- Flange Width:
- 7mm
Technical
Technical
| G Thread | M170x3 |
|---|---|
| d1 | 170.5mm |
| d2 | 235mm |
| d3 | 244mm |
| B | 41mm |
| B1 | 7mm |
| Permitted piston displacement | 6mm |
| Piston area | 9400mm2 |
