Major Brand HRC110B Coupling Assembly Pilot Bored Nominal 10mm Max Bore 55mm with Natural Rubber Insert
Major Brand HRC110B Coupling Assembly Pilot Bored Nominal 10mm Max Bore 55mm with Natural Rubber Insert
Regular price
€47,95
ex VAT
Regular price
Sale price
€47,95
ex VAT
Equivalent to: HRC110B HRC110B HRC110I DRC110B+DRC110B+DRC110I
In stock
Price Break
10+
€35,92
19+
€33,90
29+
€33,49
39+
€33,09
49+
€32,69
74+
€32,28
99+
€30,27
199+
€29,86
249+
€29,46
499+
€29,06
999+
€28,25
Description
Description
Branded HRC Coupling Assembly Pilot Bored with Natural Rubber Insert: These semi-elastic couplings are designed for general use purpose use. The fully machined outside diameters allow alignment by simple straight edge methods. The shaft connection is "fail-safe" due to interacting dog design.
Supplied as a complete coupling assembly. The assembly comprises of 2 coupling flanges and a matching insert. The coupling is the BB type which has pilot bores and will require machining to your application requirements.
Do you need a Fire Resistant Antistatic (F.R.A.S) rubber insert. See links below.
Equivalent: HRC110B HRC110B HRC110I DRC110B+DRC110B+DRC110I
- Brand / Quality:
- Major Brand - High Quality
Technical
Technical

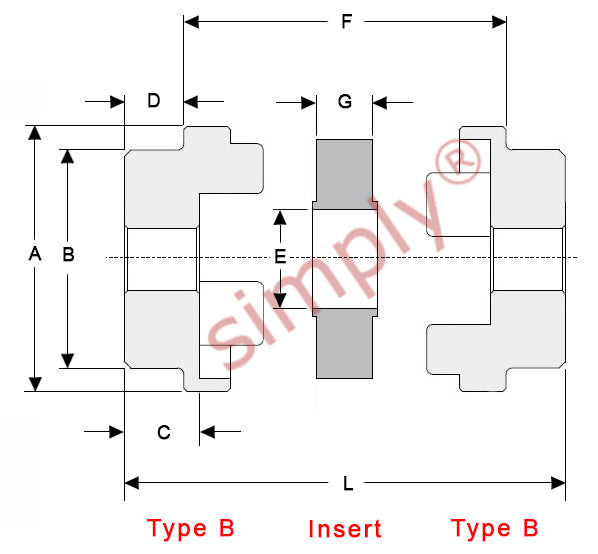

| Nominal Torque | 160 Nm |
|---|---|
| Overall Diameter A | 112mm |
| Hub Diameter B | 100mm |
| Assembled Length F | 45.5mm |
| Insert Bore Dia E | 45mm |
| Insert Width G | 29.5mm |
| Parallel Misalignment | 0.3mm |
| Assembly Weight | 6.45kg |
| L width | 119.5mm<sup>3</sup> |
| B Type - Max Bore | 55mm |
| B Type - Pilot Bore | 10mm |
| B Type - Keyway Screw Size | M10mm |
| B Type - Shoulder Width D | 37mm |
| B Type - Hub Width C | 45.5mm |
| Max Power at 100 rpm | 1.68 kW |
| Max Power at 200 rpm | 3.35 kW |
| Max Power at 400 rpm | 6.7 kW |
| Max Power at 600 rpm | 10.1 kW |
| Max Power at 720 rpm | 12.1 kW |
| Max Power at 800 rpm | 13.4 kW |
| Max Power at 960 rpm | 16.1 kW |
| Max Power at 1200 rpm | 20.1 kW |
| Max Power at 1440 rpm | 24.1 kW |
| Max Power at 1600 rpm | 26.8 kW |
| Max Power at 1800 rpm | 30.2 kW |
| Max Power at 2000 rpm | 33.5 kW |
| Max Power at 2200 rpm | 36.9 kW |
| Max Power at 2400 rpm | 40.2 kW |
| Max Power at 2600 rpm | 43.6 kW |
| Max Power at 2880 rpm | 48.3 kW |
| Max Power at 3000 rpm | 50.3 kW |
| Max Power at 3600 rpm | 60.3 kW |
| Nominal Torque (Nm) | 160 Nm |
| Max Torque | 360 Nm |
