SKU: HTD2000-9-400-DUNLOP

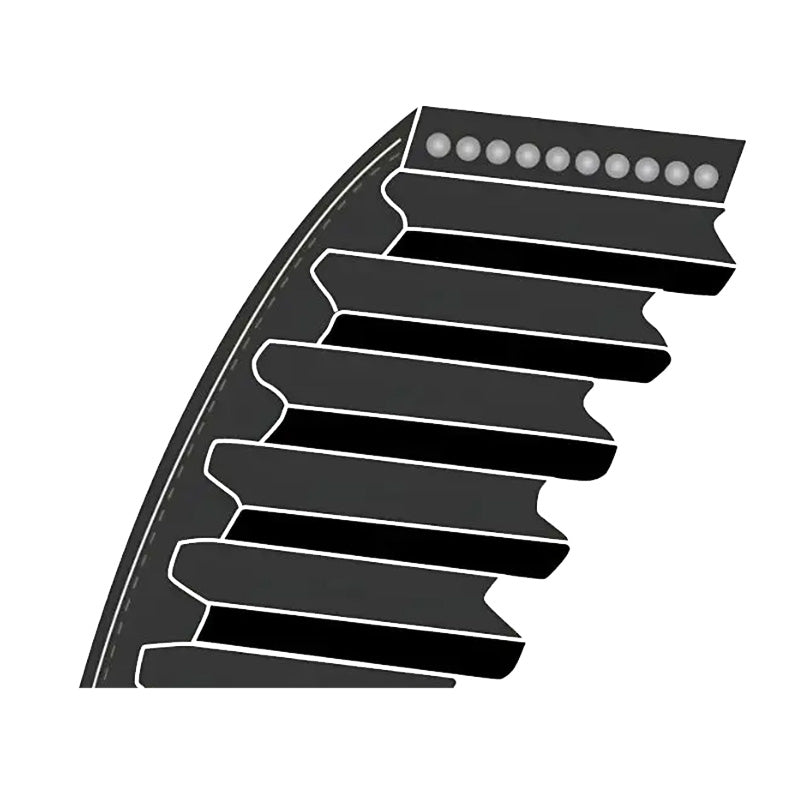

HTD2000-9-400 Dunlop Synchronous Belt 9mm Wide 5mm Pitch 400 Teeth - Allow 2-3 Days
HTD2000-9-400 Dunlop Synchronous Belt 9mm Wide 5mm Pitch 400 Teeth - Allow 2-3 Days
Regular price
€15,95
ex VAT
Regular price
Sale price
€15,95
ex VAT
Equivalent to: 5M-2000
In stock
Price Break
3+
€11,80
5+
€11,14
10+
€11,01
15+
€10,87
20+
€10,74
30+
€10,61
40+
€9,95
50+
€9,81
60+
€9,68
75+
€9,55
100+
€9,28
Description
Description
|
HTD Synchronous Drive Belts 5mm Pitch: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Synchronous belt drives become more economical, safer, and they render possible a synchronous transmission equivalent to chain and gear drives. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Dunlop - High Quality
- Belt Width Approx:
- 9mm
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 2000mm
- Number of Teeth:
- 400
Technical
Technical
| Pitch length | 2000mm |
|---|---|
| Belt width | 9mm |
| Number of teeth | 400 |
| Tooth pitch t | 5mm |
| Belt thickness h<sub>s</sub> | 3.6mm |
| Tooth height h<sub>t</sub> | 2.1mm |
