SKU: JSC047MS-JUB

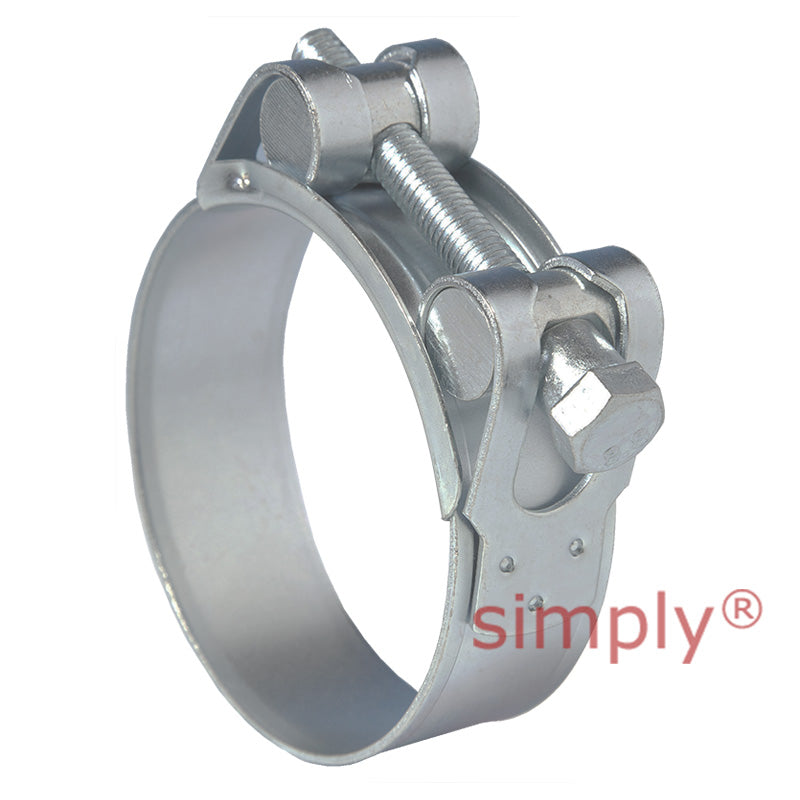

JSC047MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 44mm-47mm Band Width 20mm
JSC047MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 44mm-47mm Band Width 20mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
Low stock
Price Break
3+
€3,18
5+
€2,72
9+
€2,50
19+
€2,27
49+
€1,82
74+
€1,59
99+
€1,36
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 44mm
- Max Adjustment Range:
- 47mm
Technical
Technical
| Adjustment Range | 44mm - 47mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
