SKU: JSC085SS316-JUB

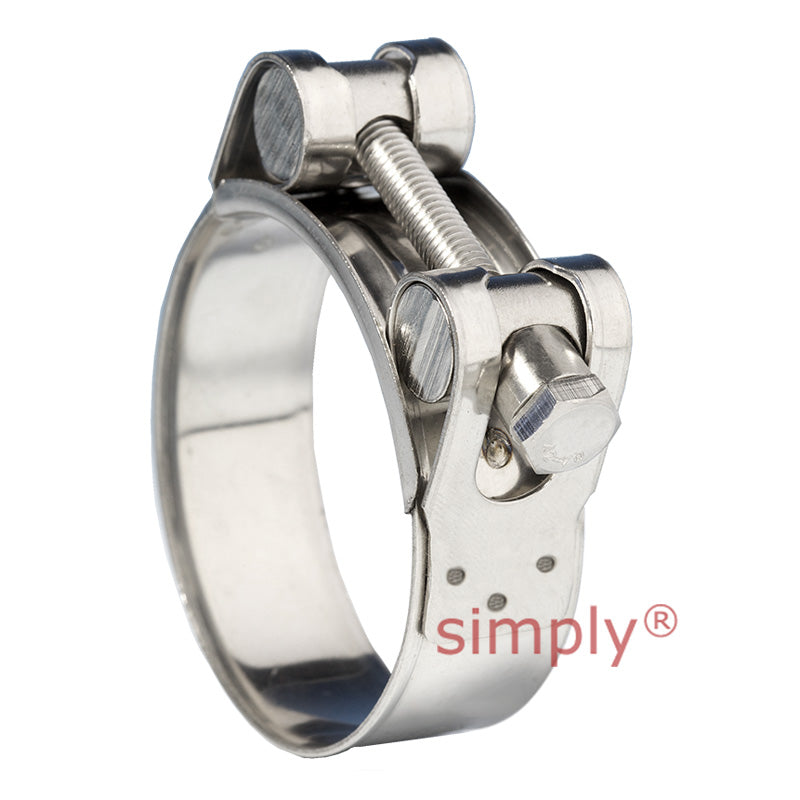

JSC085SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 80mm-85mm Band Width 25mm
JSC085SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 80mm-85mm Band Width 25mm
Regular price
€23,15
ex VAT
Regular price
Sale price
€23,15
ex VAT
Low stock
Price Break
5+
€22,92
10+
€21,99
20+
€21,53
50+
€20,84
100+
€20,37
500+
€19,21
1000+
€16,21
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 80mm
- Max Adjustment Range:
- 85mm
Technical
Technical
| Adjustment Range | 80mm - 85mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
