SKU: JSC200SS-JUB

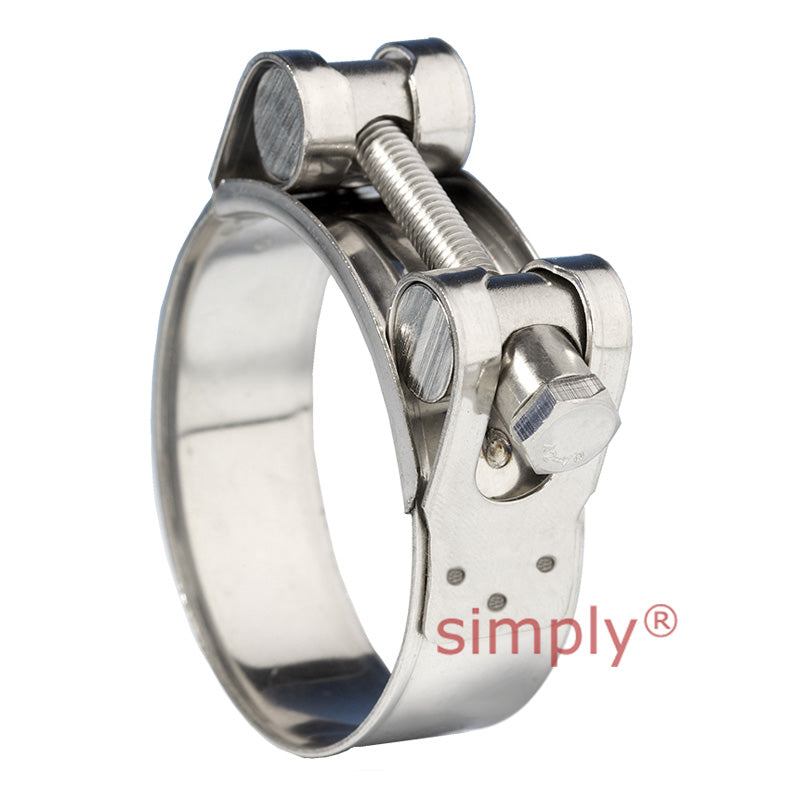

JSC200SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
JSC200SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
In stock
Price Break
3+
€15,34
5+
€14,72
9+
€14,41
19+
€13,94
49+
€13,63
74+
€12,86
99+
€10,84
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 188mm
- Max Adjustment Range:
- 200mm
Technical
Technical
| Adjustment Range | 188mm - 200mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
