SKU: JSC239MS-JUB

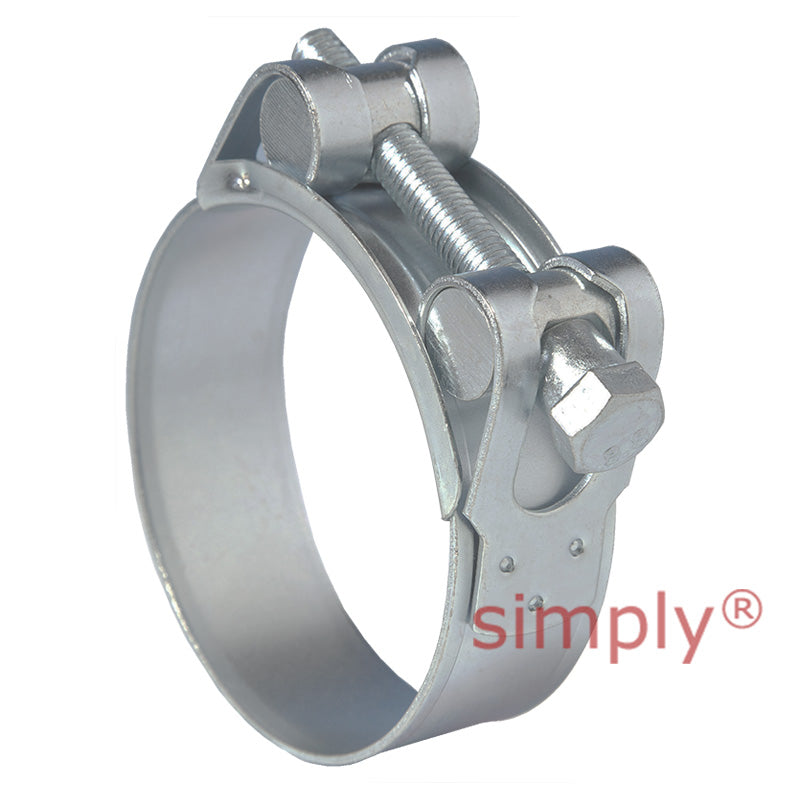

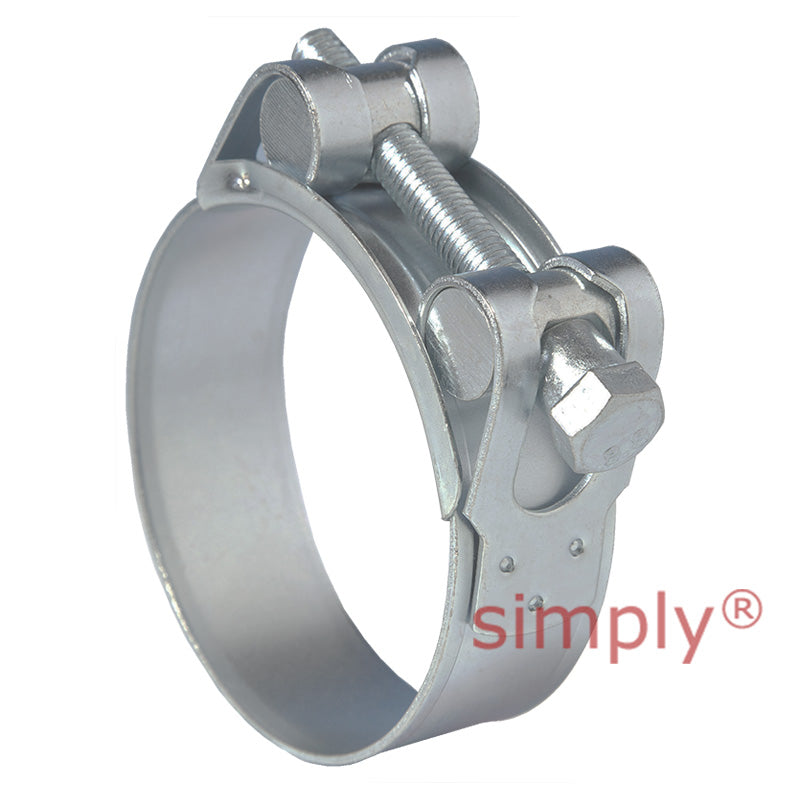

JSC239MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
JSC239MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
Regular price
€9,00
ex VAT
Regular price
Sale price
€9,00
ex VAT
Low stock
Price Break
5+
€8,91
10+
€8,55
20+
€8,37
50+
€8,10
100+
€7,92
500+
€7,47
1000+
€6,30
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 227mm
- Max Adjustment Range:
- 239mm
Technical
Technical
| Adjustment Range | 227mm - 239mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
