SKU: K18x24x20-EU

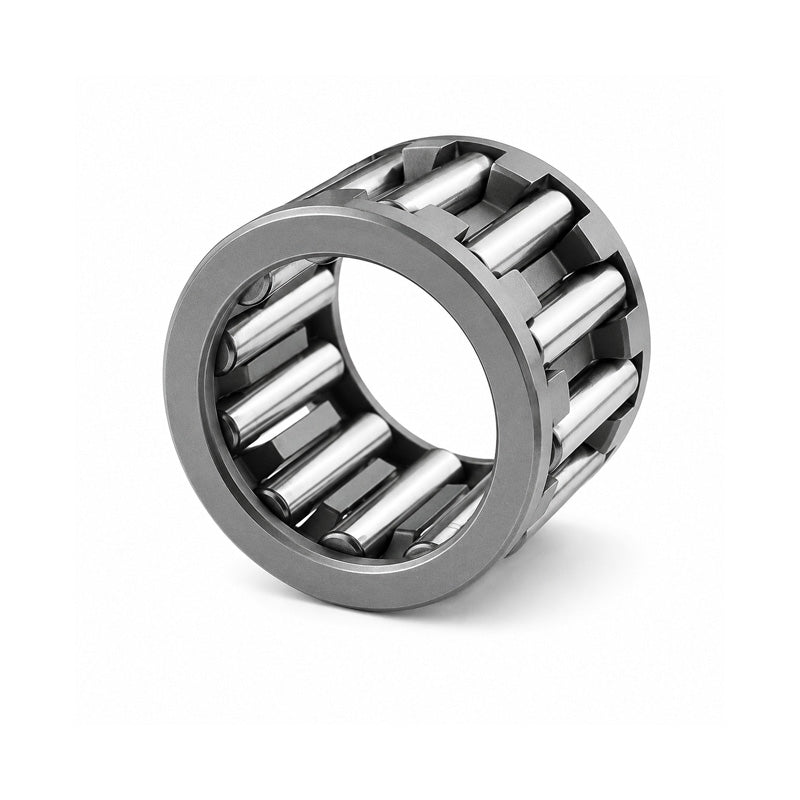

K18x24x20 Budget Needle Roller Cage Assembly 18x24x20mm
K18x24x20 Budget Needle Roller Cage Assembly 18x24x20mm
Regular price
€11,25
ex VAT
Regular price
Sale price
€11,25
ex VAT
In stock
Price Break
10+
€10,01
19+
€9,45
29+
€9,34
39+
€9,23
49+
€9,11
74+
€9,00
99+
€8,44
199+
€8,33
249+
€8,21
499+
€8,10
999+
€7,88
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 18mm |
|---|---|
| Ew | 24mm |
| U | 20mm |
| Dynamic load C | 19400 N |
| Static load Co | 27000 N |
| Fatigue load limit Pu | 3250 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| Seal | G/SD18x24x3 |
| Weight | 18 g |
