SKU: K45x50x27-MB

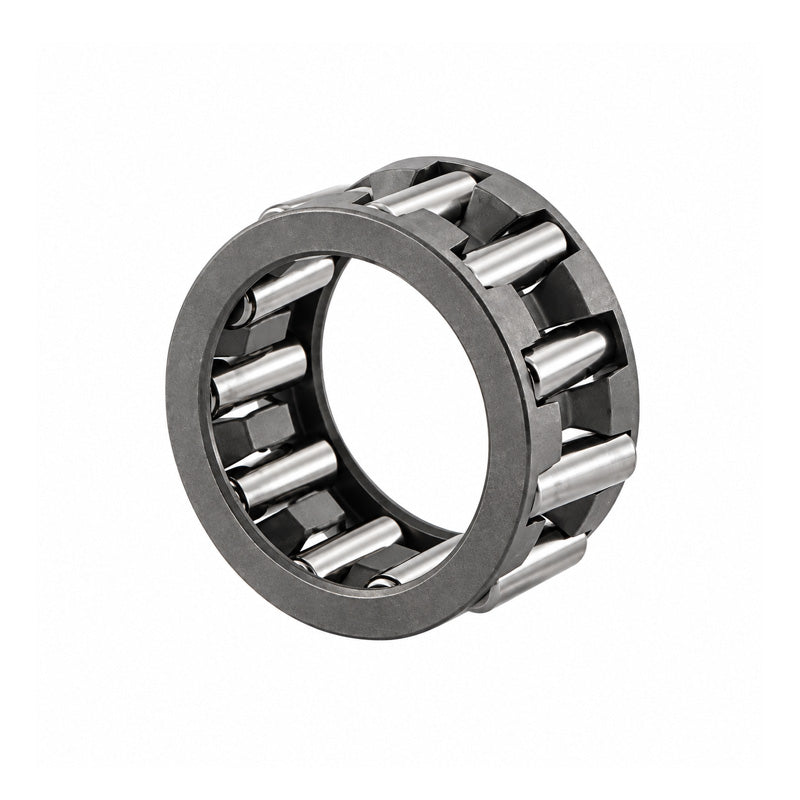

Major Brand K45x50x27 Needle Roller Cage Assembly 45x50x27mm
Major Brand K45x50x27 Needle Roller Cage Assembly 45x50x27mm
Regular price
€21,95
ex VAT
Regular price
Sale price
€21,95
ex VAT
Equivalent to: KT455027
In stock
Price Break
10+
€16,30
19+
€15,38
29+
€15,20
39+
€15,02
49+
€14,83
74+
€14,65
99+
€13,73
199+
€13,55
249+
€13,37
499+
€13,18
999+
€12,82
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT455027
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 50mm
- Width:
- 27mm
Technical
Technical
| Fw | 45mm |
|---|---|
| Ew | 50mm |
| U | 27mm |
| Dynamic load | 33000 N |
| Static load | 81500 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| Weight | 51 g |
