SKU: K60x65x20-MB

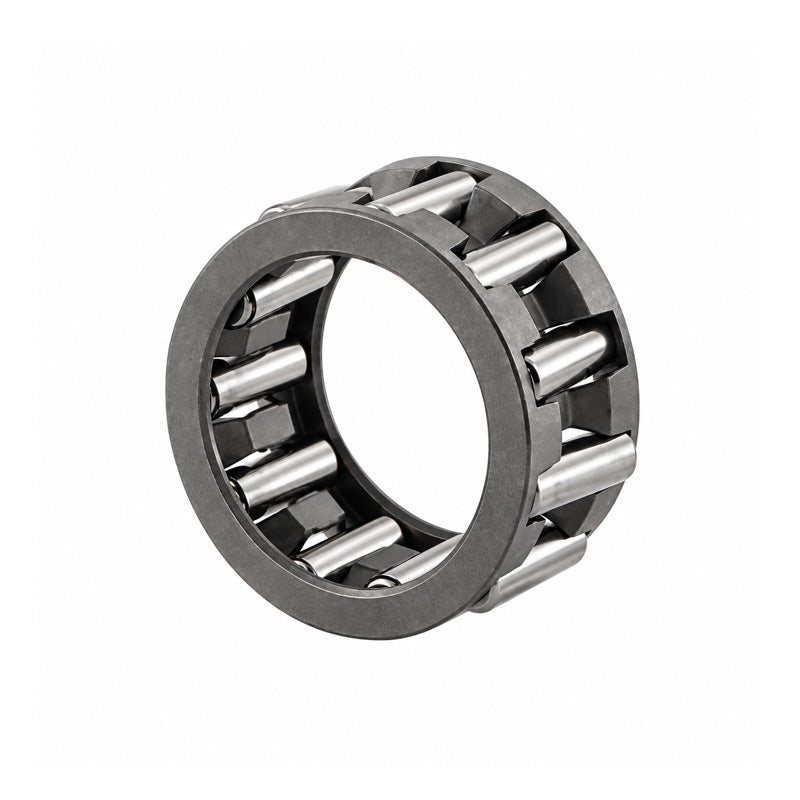

Major Brand K60x65x20 Needle Roller Cage Assembly 60x65x20mm
Major Brand K60x65x20 Needle Roller Cage Assembly 60x65x20mm
Regular price
€10,16
ex VAT
Regular price
Sale price
€10,16
ex VAT
Equivalent to: KT606520
In stock
Price Break
10+
€9,04
19+
€8,53
29+
€8,43
39+
€8,33
49+
€8,23
74+
€8,13
99+
€7,62
199+
€7,52
249+
€7,42
499+
€7,32
999+
€7,11
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT606520
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 65mm
- Width:
- 20mm
Technical
Technical
| Fw | 60mm |
|---|---|
| Ew | 65mm |
| U | 20mm |
| Dynamic load | 28100 N |
| Static load | 72000 N |
| Fatigue load limit Pu | 8800 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| Weight | 52 g |
