SKU: K65x73x30-MB

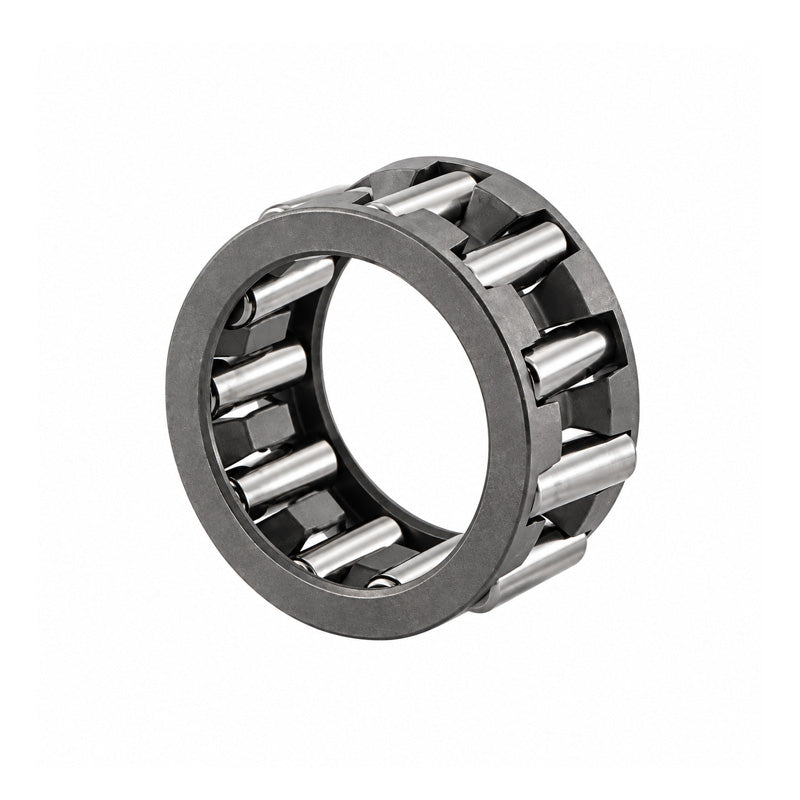

Major Brand K65x73x30 Needle Roller Cage Assembly 65x73x30mm
Major Brand K65x73x30 Needle Roller Cage Assembly 65x73x30mm
Regular price
€44,95
ex VAT
Regular price
Sale price
€44,95
ex VAT
Equivalent to: KT657330
In stock
Price Break
10+
€33,78
19+
€31,88
29+
€31,50
39+
€31,12
49+
€30,74
74+
€30,36
99+
€28,47
199+
€28,09
249+
€27,71
499+
€27,33
999+
€26,57
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT657330
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 73mm
- Width:
- 30mm
Technical
Technical
| Fw | 65mm |
|---|---|
| Ew | 73mm |
| U | 30mm |
| Dynamic load | 53900 N |
| Static load | 125000 N |
| Fatigue load limit Pu | 15600 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| Weight | 140 g |
