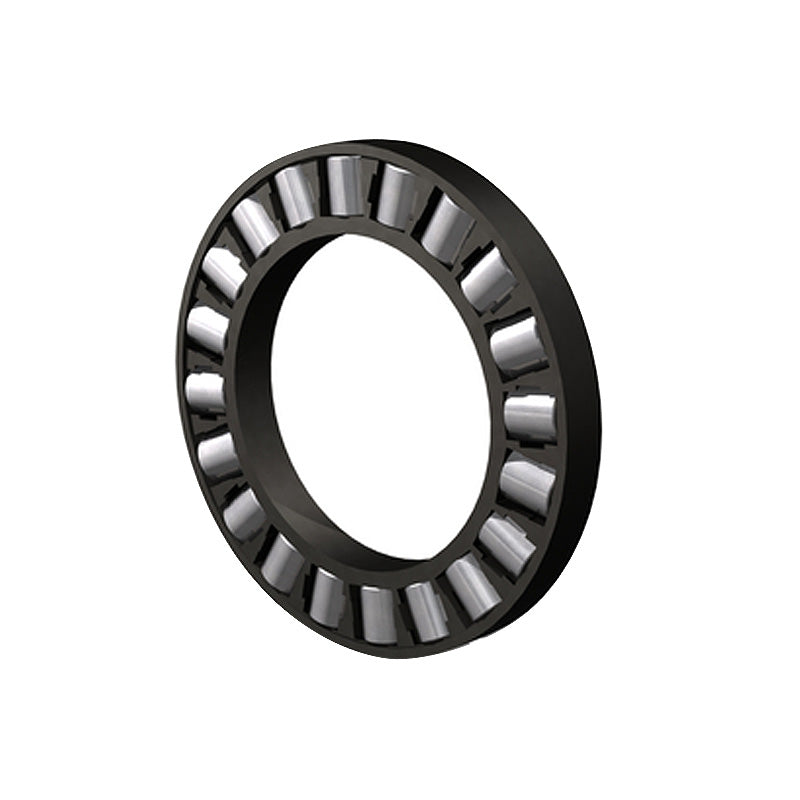

NTN K81211T2 Needle Roller Cage Only 55x90x11mm - Allow 2-3 Days
NTN K81211T2 Needle Roller Cage Only 55x90x11mm - Allow 2-3 Days
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
3+
€30,71
4+
€29,47
9+
€28,85
19+
€27,92
49+
€27,30
99+
€25,75
499+
€21,71
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 11mm
Technical
Technical
| Dc1 - Inside diameter | 55mm |
|---|---|
| Dc - Outside diameter | 90mm |
| Dw - Roller Width | 11mm |
| WS inner ring reference | WS81211 |
| GS outer ring reference | GS81211 |
| Ea - Rollers reference outer diameter | 83.4mm |
| Eb - Rollers reference inner diameter | 60.1mm |
| Ca - Dynamic axial load rating | 121 kN |
| C0a - Static axial load rating | 340 kN |
| Cua - Limit axial load rating | 41.5 kN |
| Grease lubrication limit speed | 830 tr/min |
| Oil lubrication limit speed | 3300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
