SKU: K8x11x13TN-EU

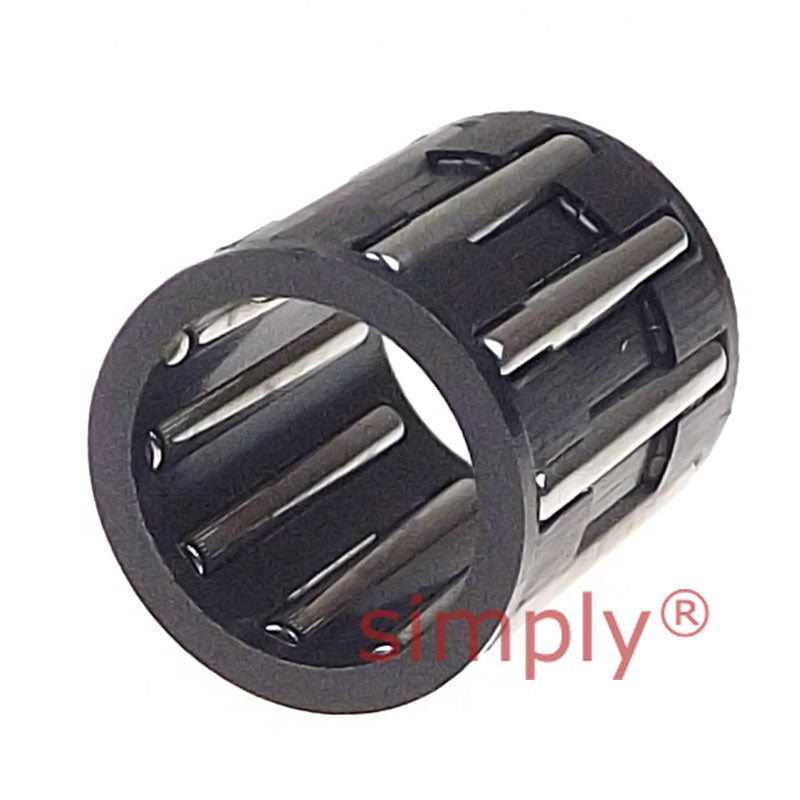

K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
K8x11x13TN Budget Needle Roller Cage Assembly 8x11x13mm
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
Equivalent to: KT81113
In stock
Price Break
10+
€3,12
19+
€2,95
29+
€2,91
39+
€2,88
49+
€2,84
74+
€2,81
99+
€2,63
199+
€2,60
249+
€2,56
499+
€2,53
999+
€2,46
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT81113
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 11mm
- Width:
- 13mm
Technical
Technical
| Fw | 8mm |
|---|---|
| Ew | 11mm |
| U | 13mm |
| Dynamic load C | 5010 N |
| Static load Co | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| Weight | 1.7 g |
