SKU: KB40-PP-AS-INA

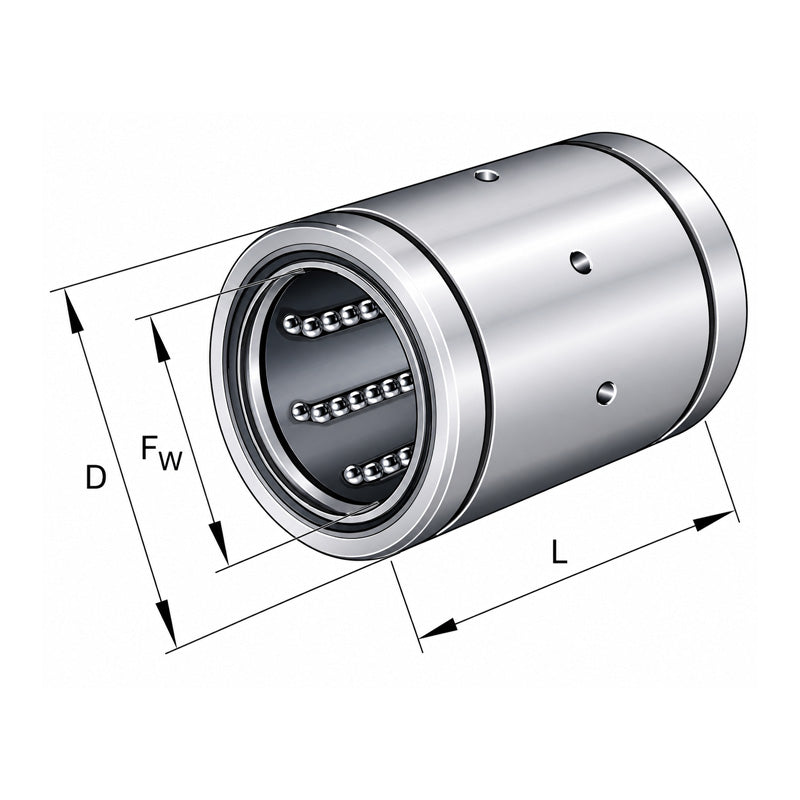

INA KB40PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 40x62x80mm
INA KB40PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
€149,95
ex VAT
Regular price
Sale price
€149,95
ex VAT
In stock
Price Break
3+
€114,11
5+
€107,70
10+
€106,41
15+
€105,13
20+
€103,85
30+
€102,57
40+
€96,16
50+
€94,88
60+
€93,59
75+
€92,31
100+
€89,75
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| N2 | 3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
