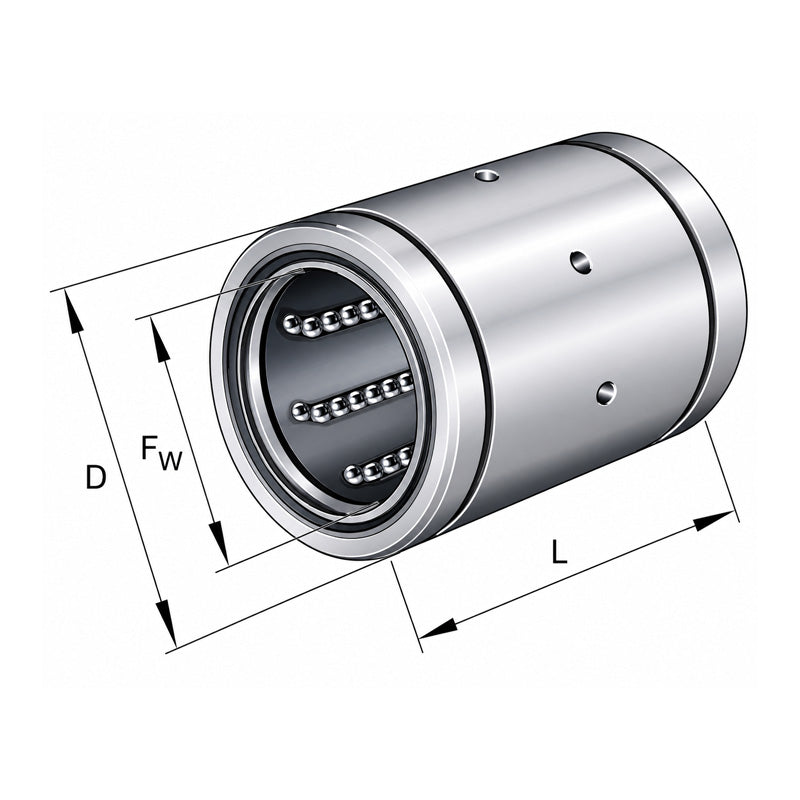

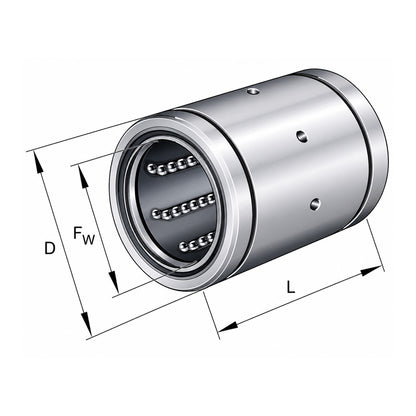

INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
€128,51
ex VAT
Regular price
Sale price
€128,51
ex VAT
In stock
Price Break
10+
€114,37
19+
€107,95
29+
€106,66
39+
€105,38
49+
€104,09
74+
€102,81
99+
€96,38
199+
€95,10
249+
€93,81
499+
€92,53
999+
€89,96
Couldn't load pickup availability
Share this product
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
