SKU: KFL001
KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
KFL001 Aluminium 2 Bolt Oval Bearing with Grub Screws 12mm Bore
Regular price
€11,95
ex VAT
Regular price
Sale price
€11,95
ex VAT
In stock
Price Break
3+
€8,94
4+
€8,44
9+
€8,34
19+
€8,24
49+
€8,14
99+
€8,04
499+
€7,54
999+
€7,43
1999+
€7,33
2999+
€7,23
4999+
€7,03
Description
Description
|

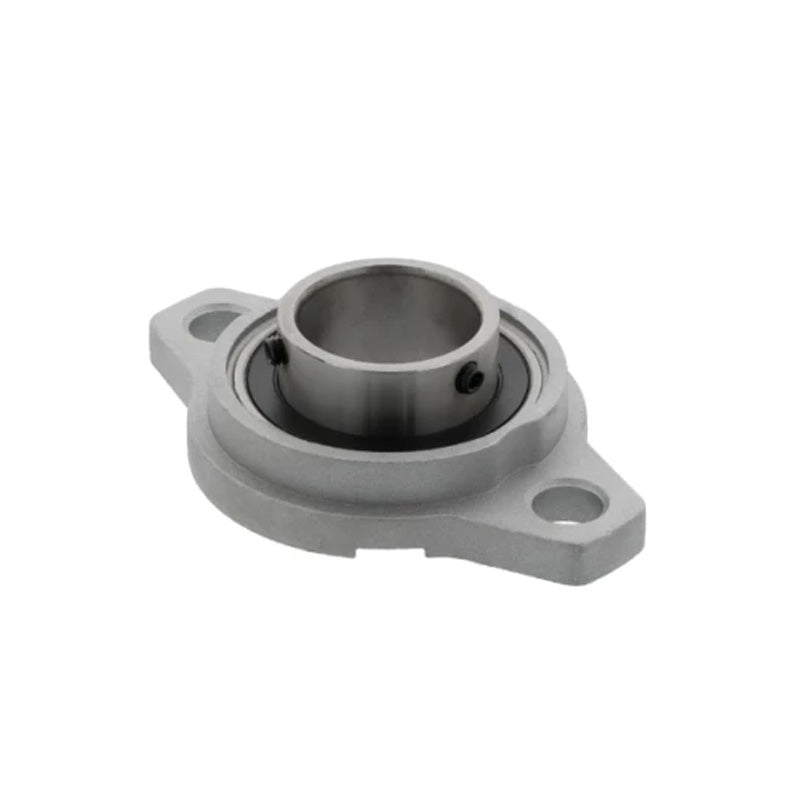

KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- KFL
- Bolt Hole Centres:
- 48mm
Technical
Technical
| d | 12mm |
|---|---|
| a | 63mm |
| e | 48mm |
| g | 6mm |
| l | 12mm |
| N | 7mm |
| b | 38mm |
| n | 4mm |
| Bi | 14.5mm |
| t | 19.5mm |
| z | 16.5mm |
| Recommended fixing screw | M6 |
| Weight | 0.08 kg |
| Dynamic load | 5096 N ~ 519.647 kgf |
| Static load | 2401 N ~ 244.834 kgf |
