SKU: KFL002

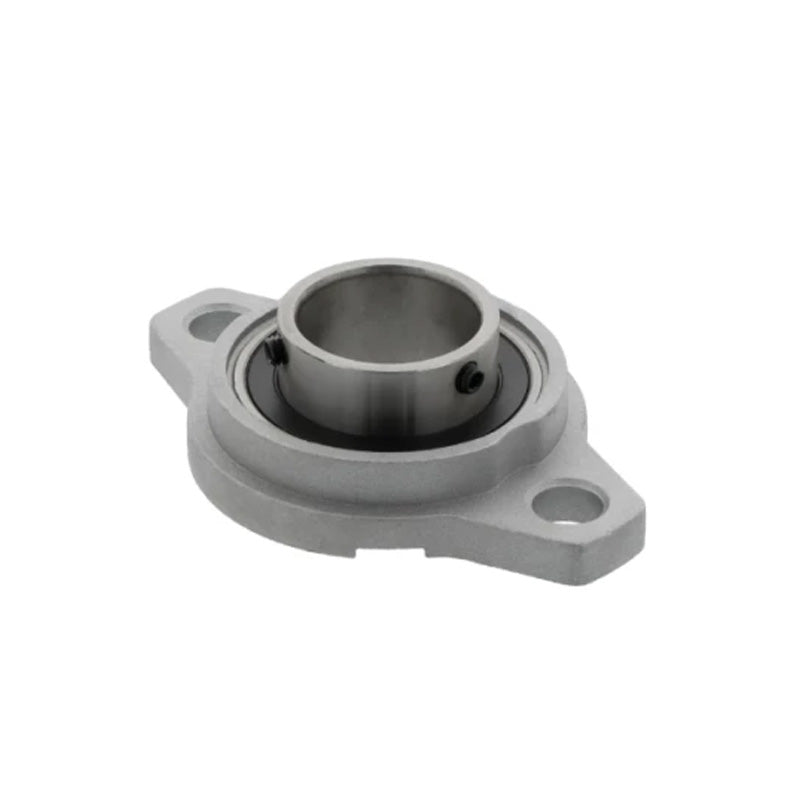

KFL002 Aluminium 2 Bolt Oval Bearing with Grub Screws 15mm Bore
KFL002 Aluminium 2 Bolt Oval Bearing with Grub Screws 15mm Bore
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
In stock
Price Break
3+
€6,17
4+
€5,82
9+
€5,75
19+
€5,68
49+
€5,61
99+
€5,54
499+
€5,20
999+
€5,13
1999+
€5,06
2999+
€4,99
4999+
€4,85
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- KFL
- Bolt Hole Centres:
- 53mm

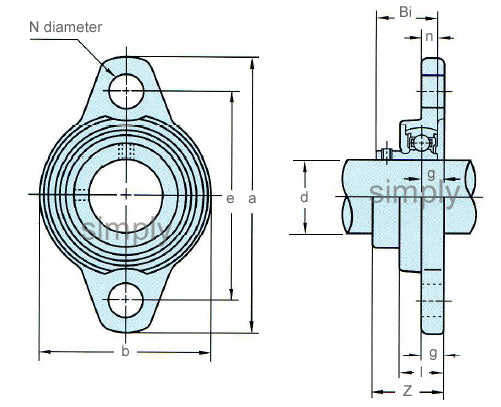

Technical
Technical
| d | 15mm |
|---|---|
| a | 67mm |
| e | 53mm |
| g | 6.5mm |
| l | 13mm |
| N | 7mm |
| b | 42mm |
| n | 4.5mm |
| Bi | 16.5mm |
| t | 22mm |
| z | 18.5mm |
| Recommended fixing screw | M6 |
| Weight | 0.11 kg |
| Dynamic load | 5586 N ~ 569.613 kgf |
| Static load | 2842 N ~ 289.803 kgf |
