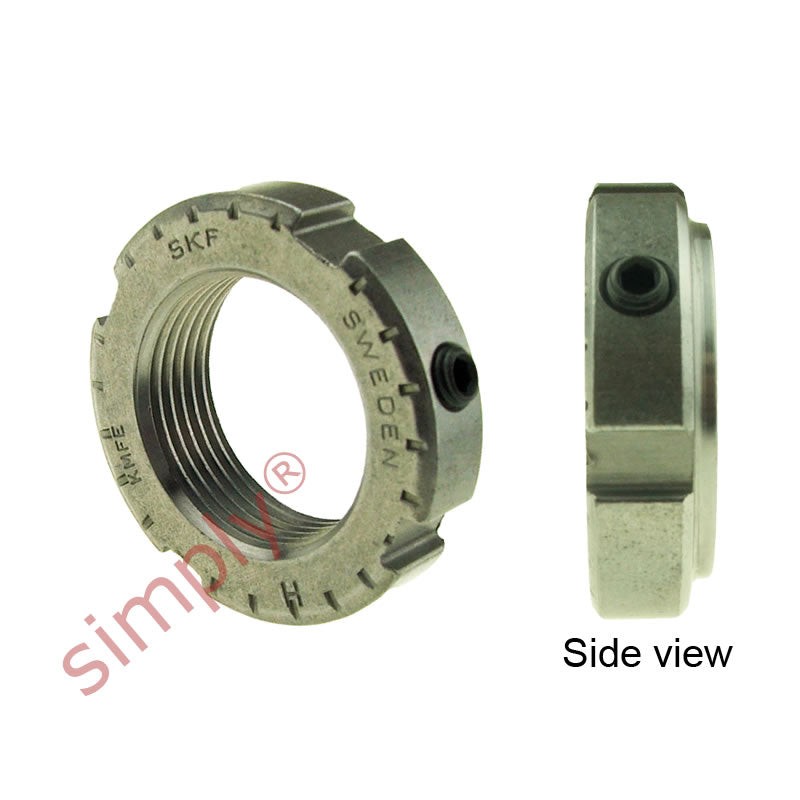

SKF KMFE11 Lock Nut with Locking Screw M55x2mm
SKF KMFE11 Lock Nut with Locking Screw M55x2mm
Regular price
€45,35
ex VAT
Regular price
Sale price
€45,35
ex VAT
In stock
Price Break
10+
€40,36
19+
€38,09
29+
€37,64
39+
€37,19
49+
€36,73
74+
€36,28
99+
€34,01
199+
€33,56
249+
€33,11
499+
€32,65
999+
€31,75
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M55x2
Technical
Technical
| d1 | 64mm |
|---|---|
| d3 | 75mm |
| B | 14mm |
| B1 | 11mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 91.5 kN |
| Looseing torque | 110 Nm |
| Weight | 0.18 kg |
| G | M55x2 |
| Designation | KMFE11 |
| Spanner | HN11 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
