SKU: KMFE14-SKF

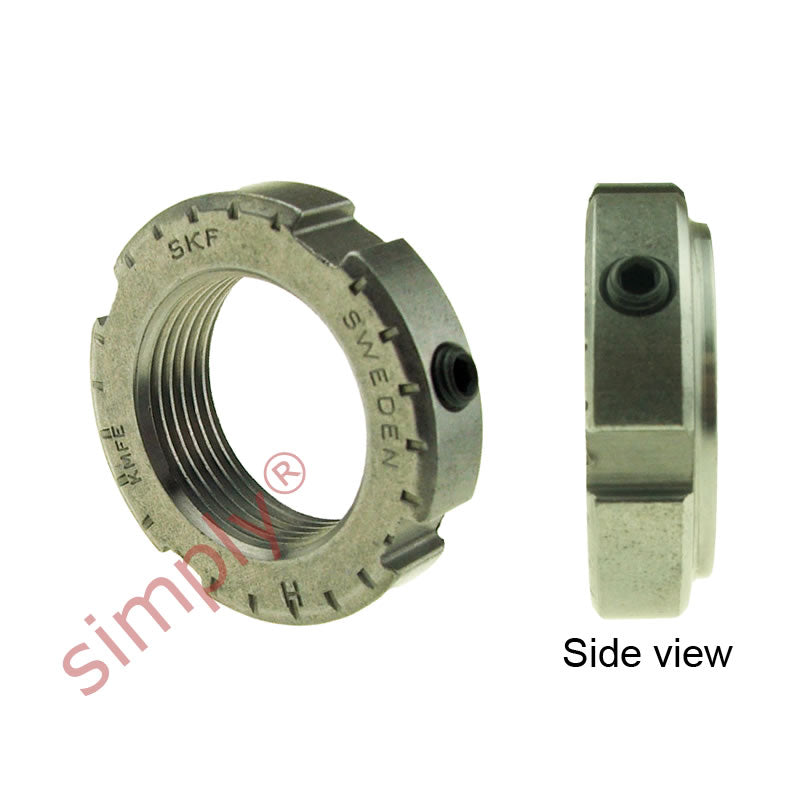

SKF KMFE14 Lock Nut with Locking Screw M70x2mm
SKF KMFE14 Lock Nut with Locking Screw M70x2mm
Regular price
€49,49
ex VAT
Regular price
Sale price
€49,49
ex VAT
In stock
Price Break
10+
€44,05
19+
€41,57
29+
€41,08
39+
€40,58
49+
€40,09
74+
€39,59
99+
€37,12
199+
€36,62
249+
€36,13
499+
€35,63
999+
€34,64
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x2
Technical
Technical
| d1 | 79mm |
|---|---|
| d3 | 92mm |
| B | 15mm |
| B1 | 12mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 118 kN |
| Looseing torque | 140 Nm |
| Weight | 0.26 kg |
| G | M70x2 |
| Designation | KMFE14 |
| Spanner | HN14 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
