SKU: KMK3-SKF
SKF KMK3 Lock Nut with Integral Locking Device M17x1mm
SKF KMK3 Lock Nut with Integral Locking Device M17x1mm
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
10+
€35,59
19+
€33,59
29+
€33,19
39+
€32,79
49+
€32,39
74+
€31,99
99+
€29,99
199+
€29,59
249+
€29,19
499+
€28,79
999+
€27,99
Share this product
Description
Description
|

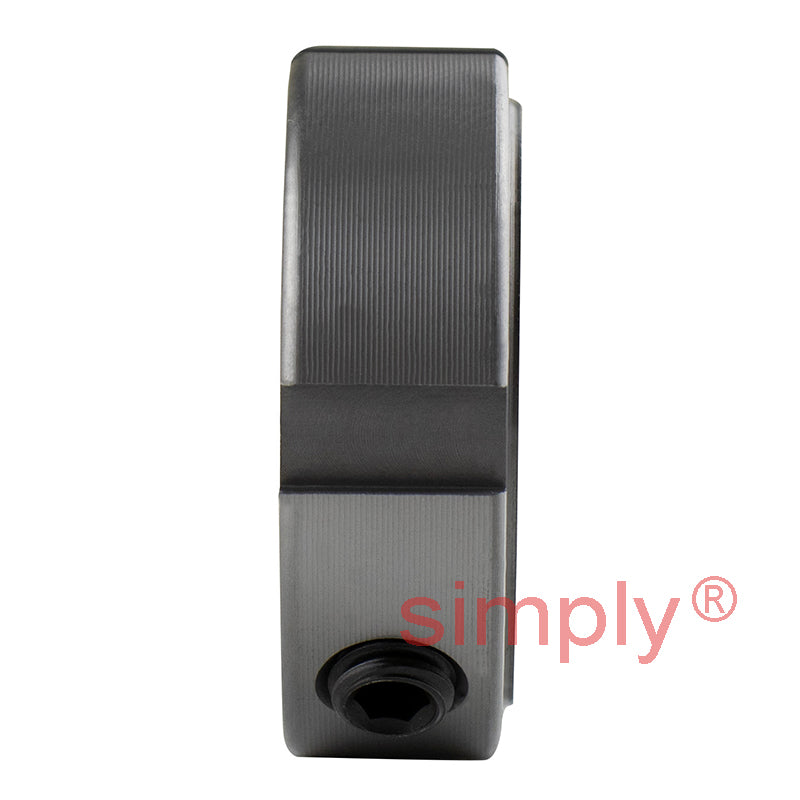

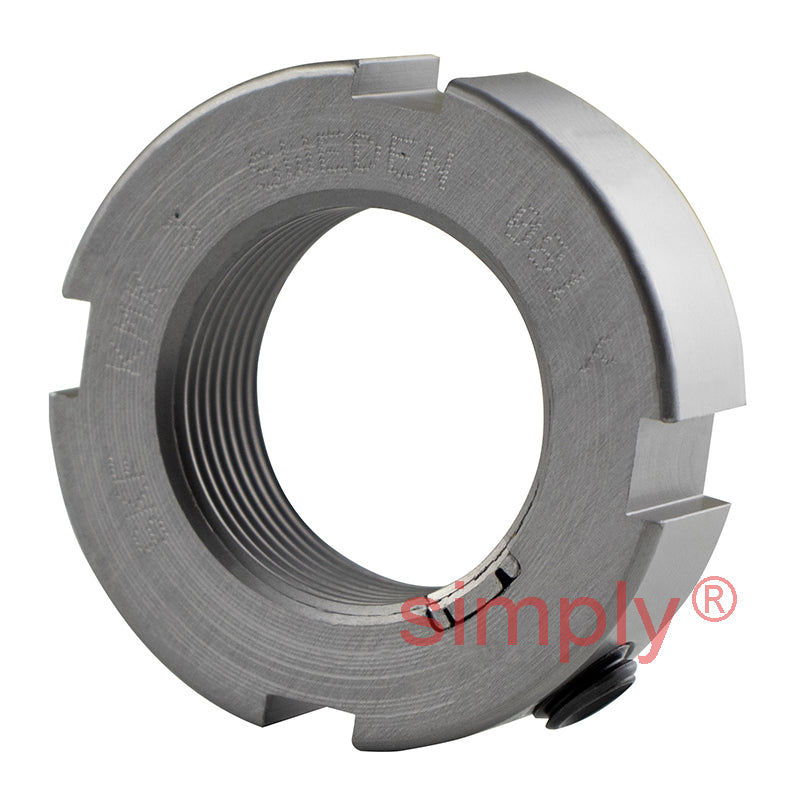

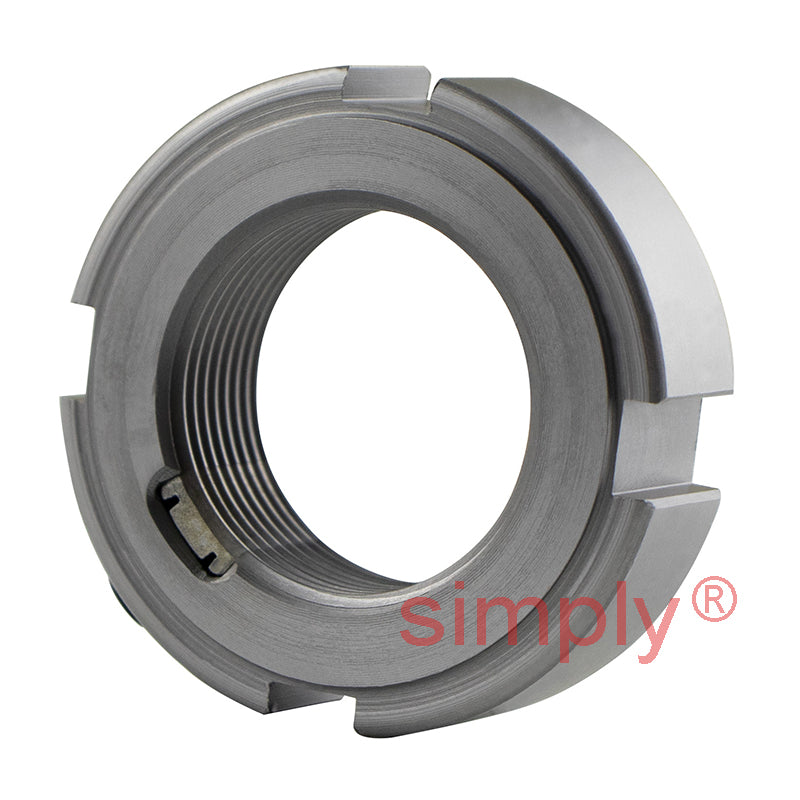

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M17x1
Technical
Technical
| d1 | 24mm |
|---|---|
| d3 | 28mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 19.6 kN |
| Loosening torque | 13 Nm |
| Weight | 0.027 kg |
| G | M17x1 |
| Designation | KMK3 |
| Locking device | HN3 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
