SKU: KMK4-SKF

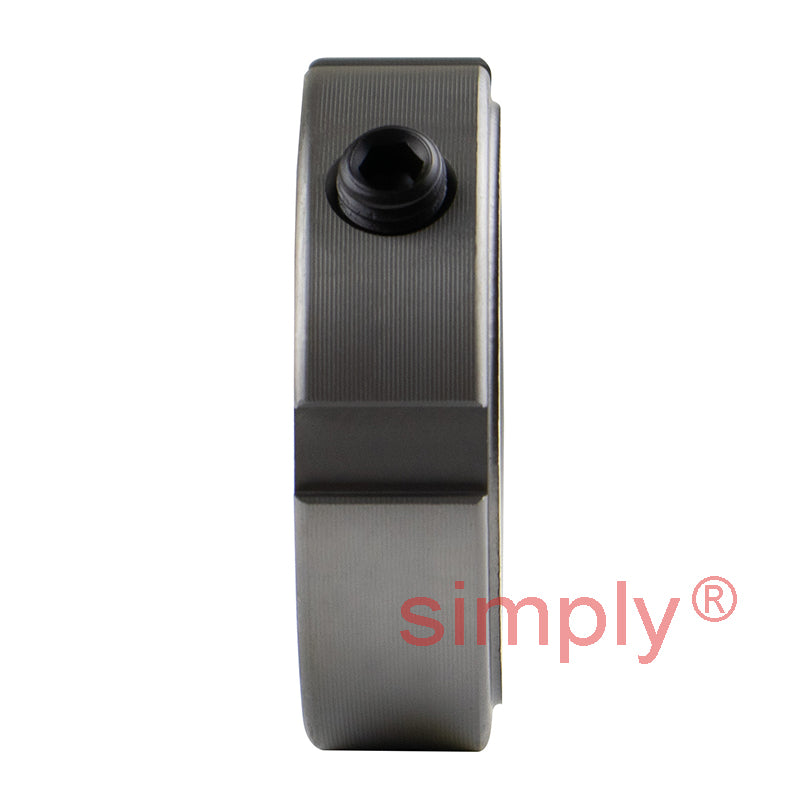

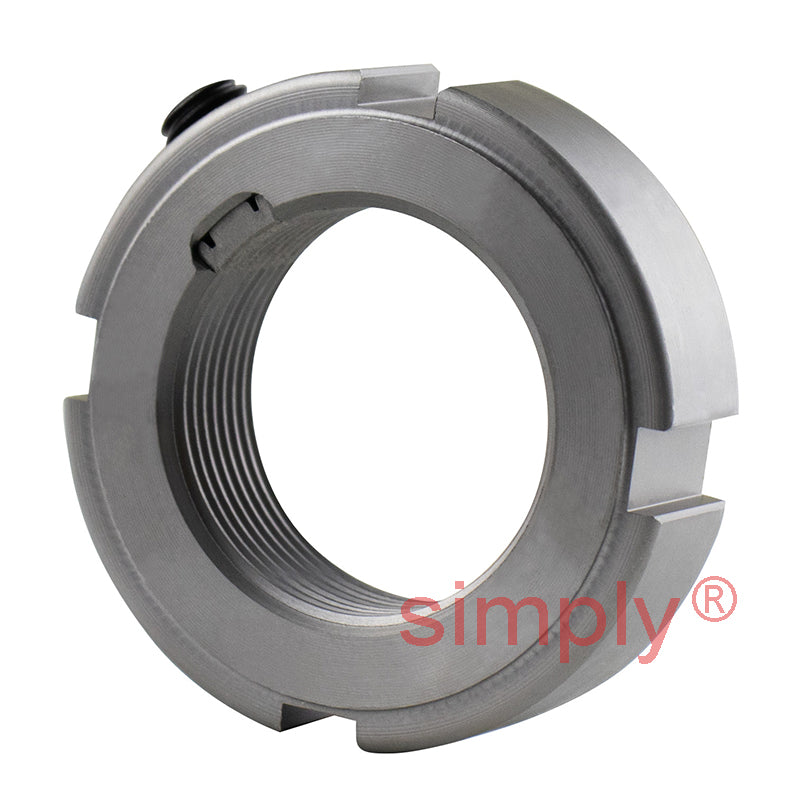

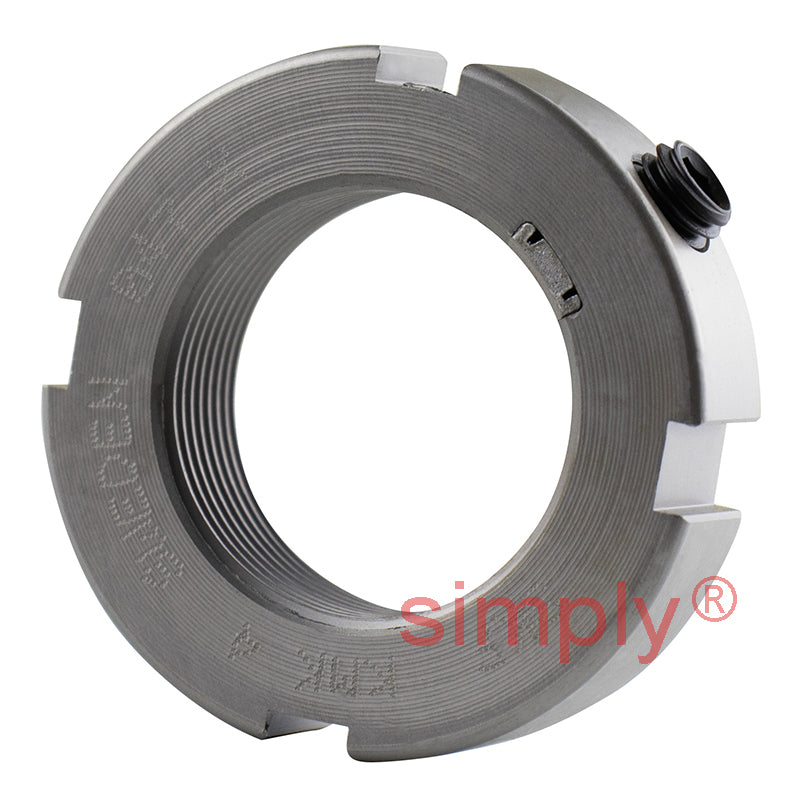

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
Regular price
€44,84
ex VAT
Regular price
Sale price
€44,84
ex VAT
In stock
Price Break
10+
€39,91
19+
€37,67
29+
€37,22
39+
€36,77
49+
€36,32
74+
€35,87
99+
€33,63
199+
€33,18
249+
€32,73
499+
€32,28
999+
€31,39
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M20x1
Technical
Technical
| d1 | 28mm |
|---|---|
| d3 | 32mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 24 kN |
| Loosening torque | 16 Nm |
| Weight | 0.03 kg |
| G | M20x1 |
| Designation | KMK4 |
| Locking device | HN4 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
