SKU: KMK9-SKF

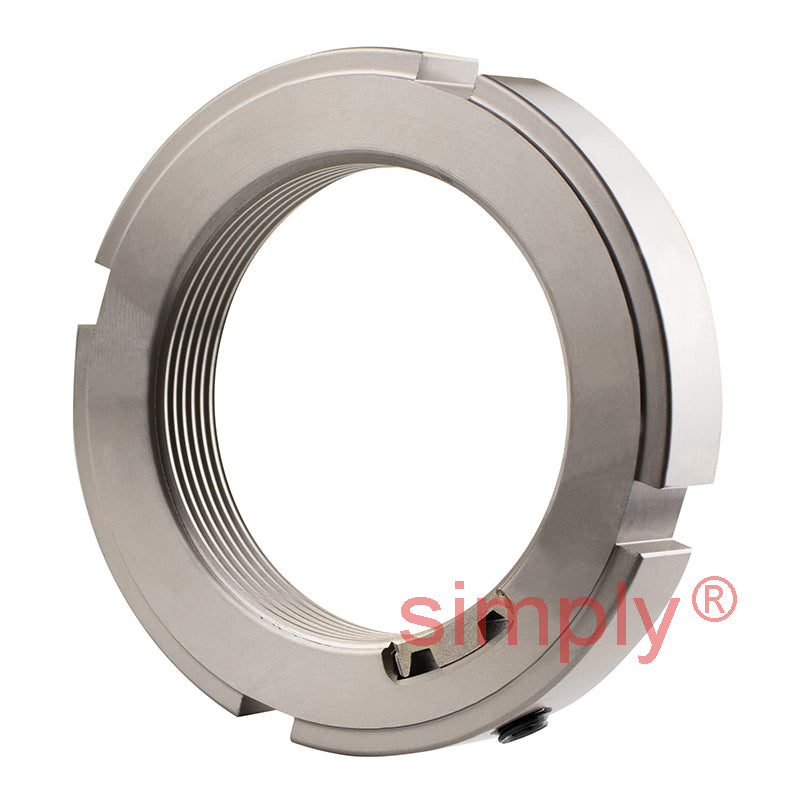

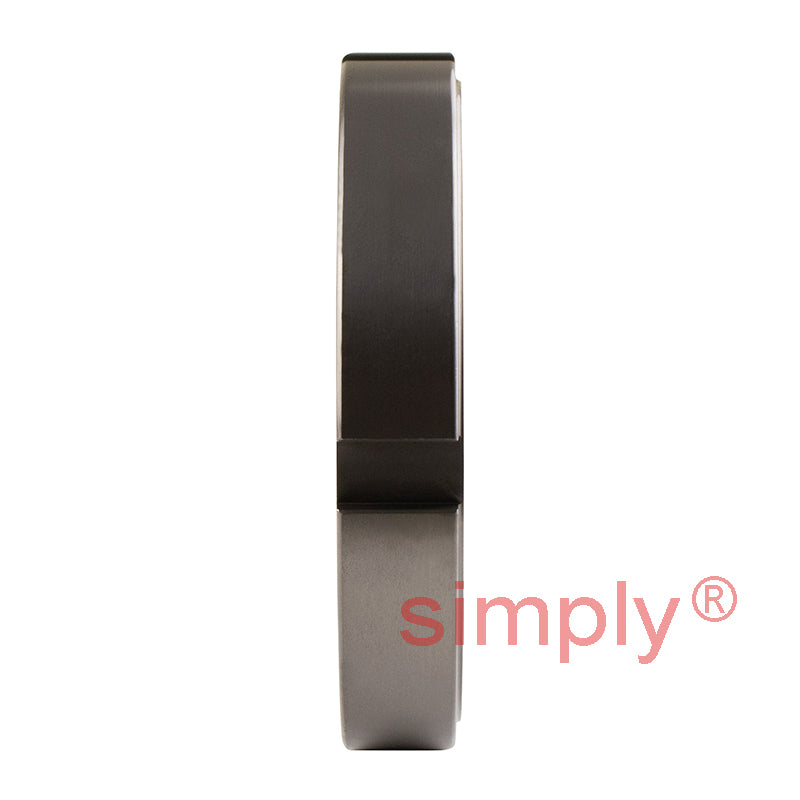

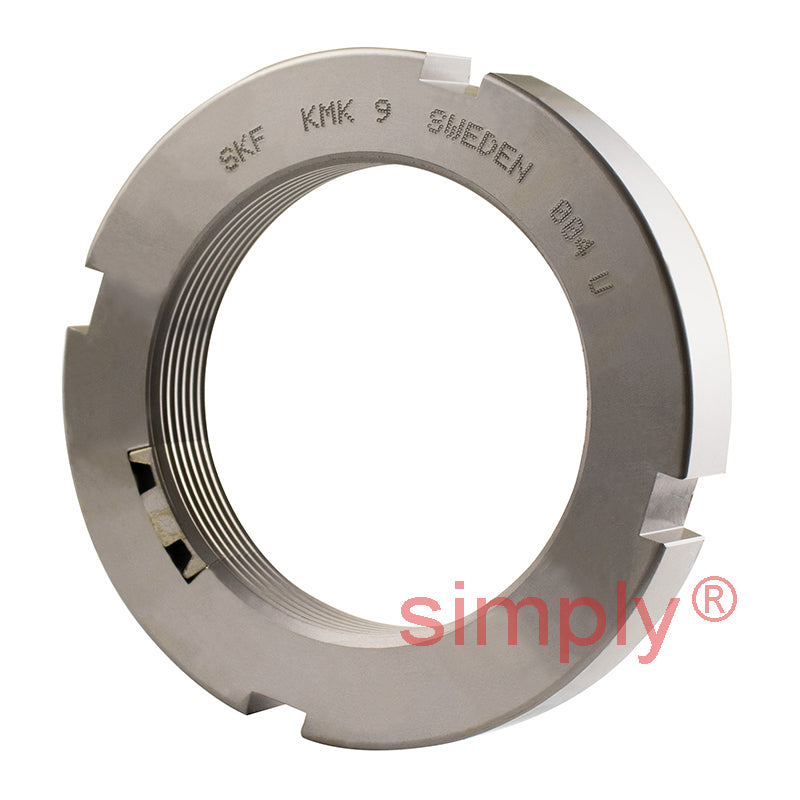

SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm

SKF KMK9 Lock Nut with Integral Locking Device M45x1.5mm
€57,95 ex VAT
€57,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €44,01
19+ €41,54
29+ €41,05
39+ €40,55
49+ €40,06
74+ €39,56
99+ €37,09
199+ €36,60
249+ €36,10
499+ €35,61
999+ €34,62
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M45x1.5
Technical
d1 60mm
d3 65mm
B 11mm
b 6mm
h 2.5mm
Axial load capacity 78 kN
Loosening torque 76 Nm
Weight 0.14 kg
G M45x1.5
Designation KMK9
Locking device HN9
Grub screw M6
Grub screw torque 8 Nm
