SKU: KMTA10-SKF

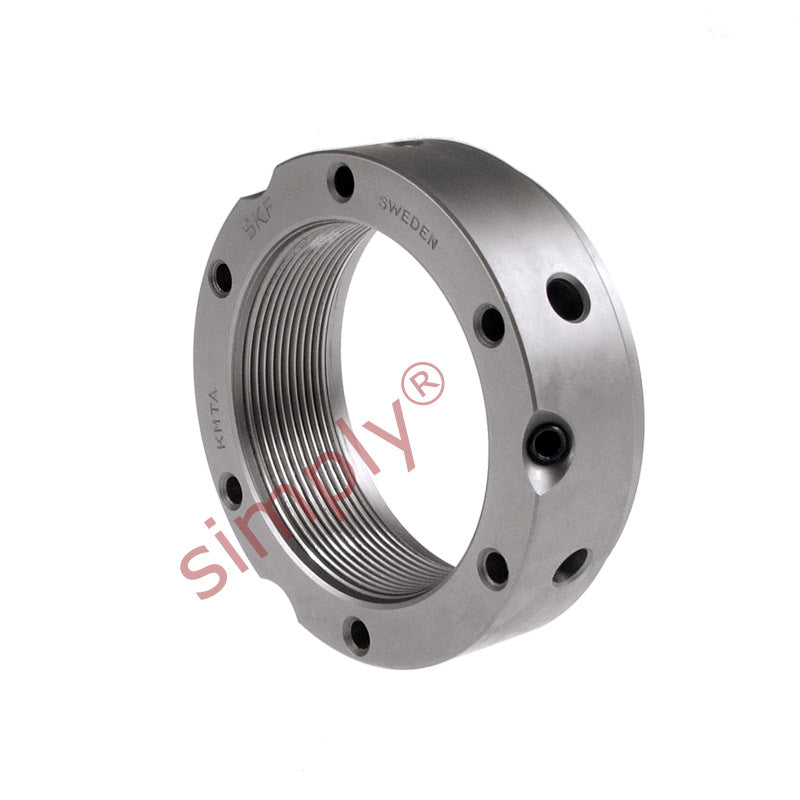

SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm
SKF KMTA10 Precision Locking Nut with Locking Pins M50x1.5mm
Regular price
€109,95
ex VAT
Regular price
Sale price
€109,95
ex VAT
In stock
Price Break
10+
€83,18
19+
€78,50
29+
€77,57
39+
€76,64
49+
€75,70
74+
€74,77
99+
€70,09
199+
€69,16
249+
€68,22
499+
€67,29
999+
€65,42
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M50x1.5
Technical
Technical
| G | M50x1.5 |
|---|---|
| d2 | 70mm |
| d3 | 63mm |
| d4 | 52mm |
| B | 24mm |
| J1 | 61.5mm |
| J2 | 13mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 300 kN |
| Loosening torque | 115 Nm |
| Weight | 0.34 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA10 |
