SKU: KMTA11-SKF

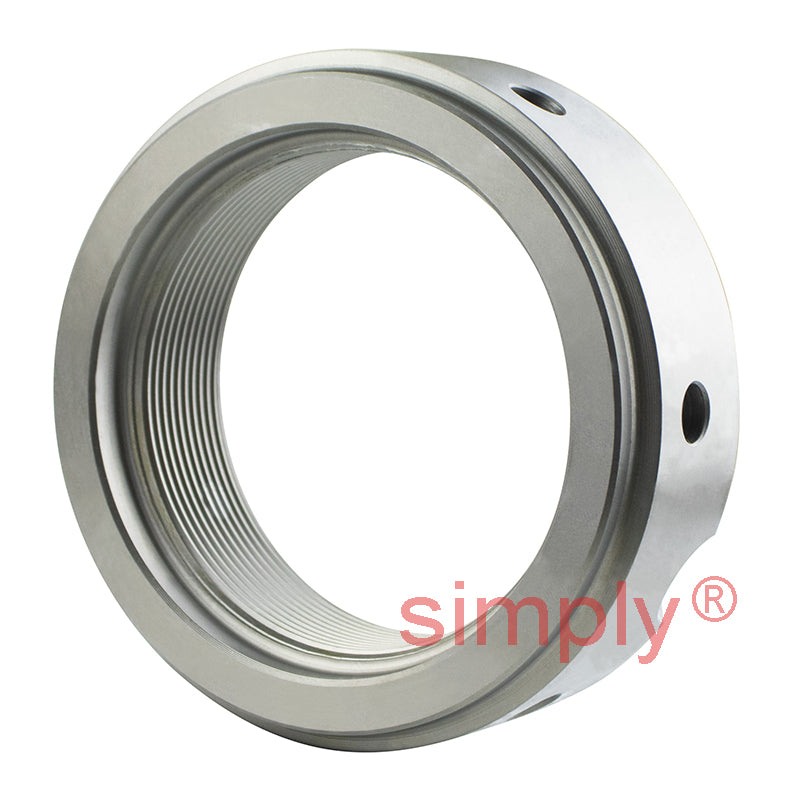

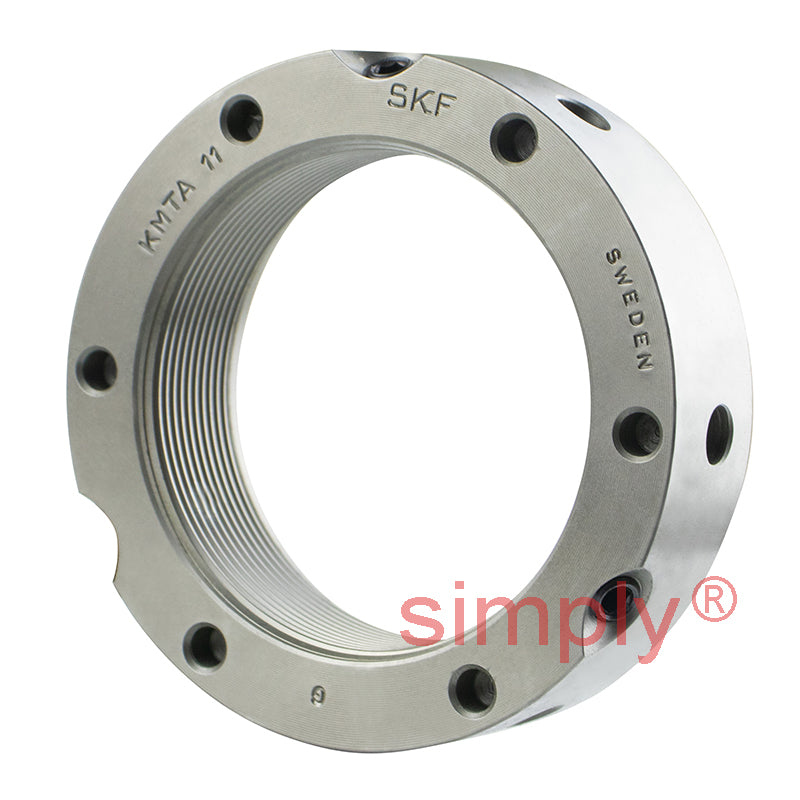

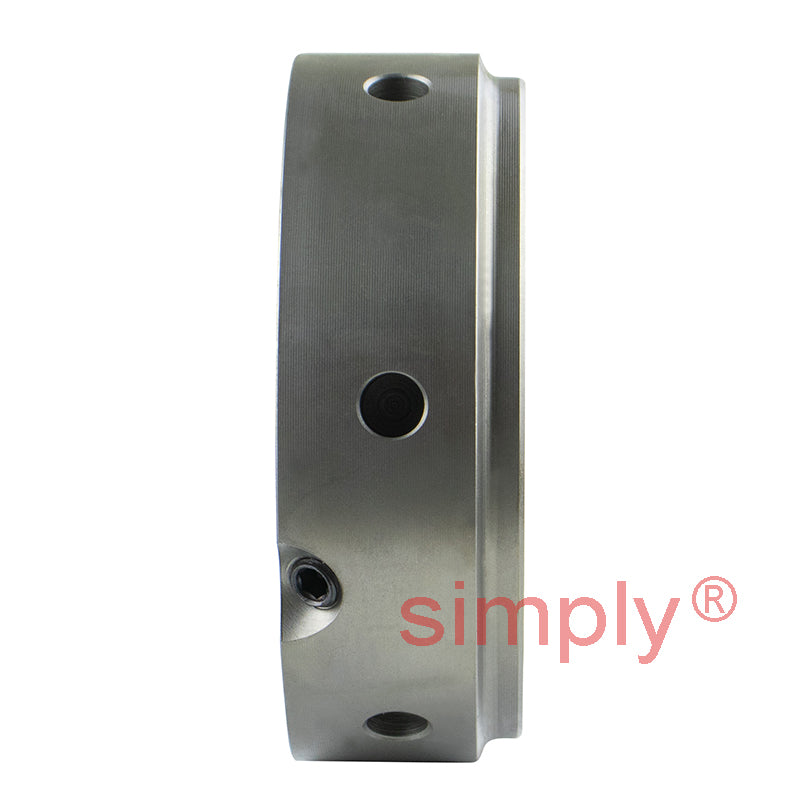

SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm
SKF KMTA11 Precision Locking Nut with Locking Pins M55x1.5mm
Regular price
€32,95
ex VAT
Regular price
Sale price
€32,95
ex VAT
In stock
Price Break
10+
€24,58
19+
€23,20
29+
€22,92
39+
€22,65
49+
€22,37
74+
€22,10
99+
€20,72
199+
€20,44
249+
€20,16
499+
€19,89
999+
€19,33
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M55x1.5
Technical
Technical
| G | M55x1.5 |
|---|---|
| d2 | 75mm |
| d3 | 70mm |
| d4 | 58mm |
| B | 24mm |
| J1 | 66.5mm |
| J2 | 13mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 340 kN |
| Loosening torque | 135 Nm |
| Weight | 0.37 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA11 |
