SKU: KMTA14-SKF

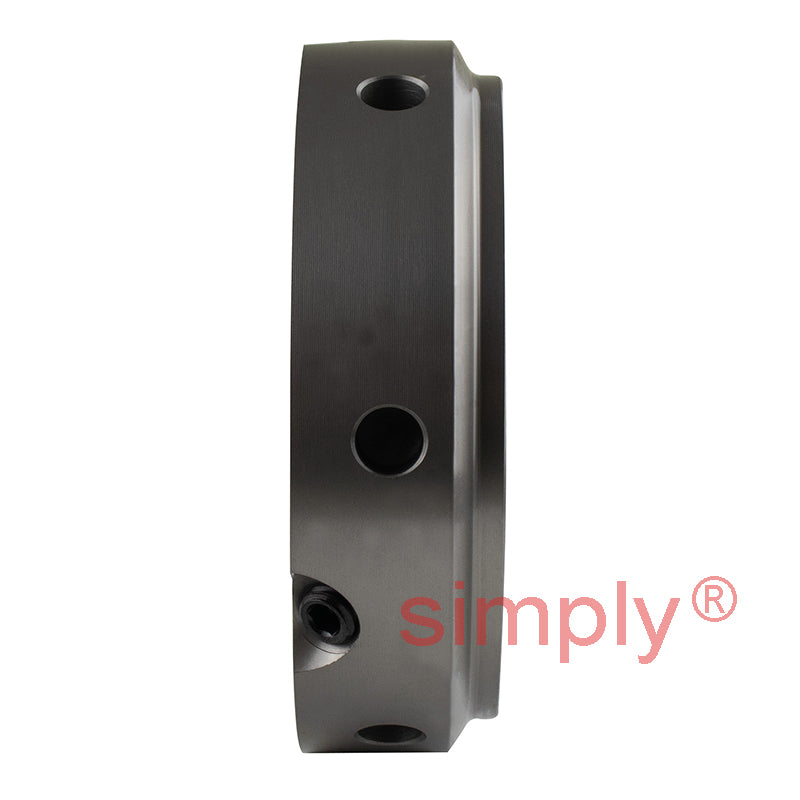

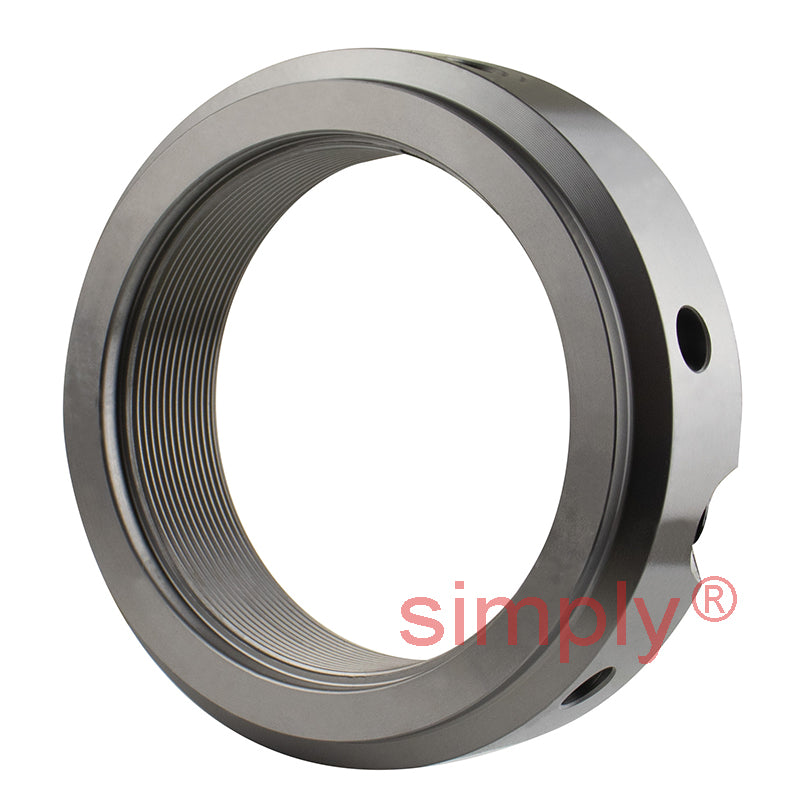

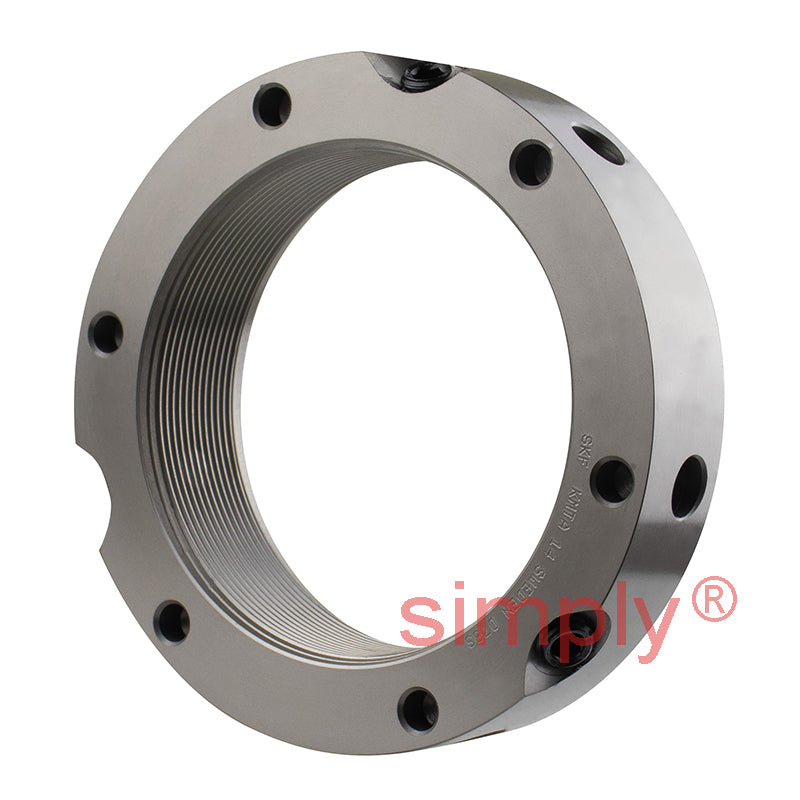

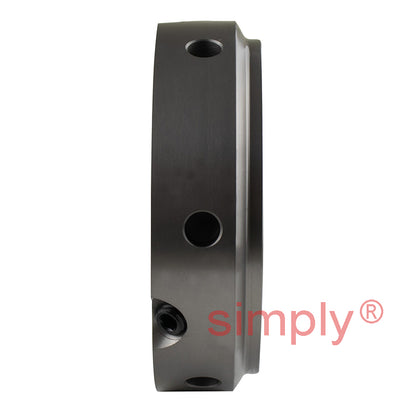

SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
SKF KMTA14 Precision Locking Nut with Locking Pins M70x1.5mm
Regular price
€181,95
ex VAT
Regular price
Sale price
€181,95
ex VAT
In stock
Price Break
10+
€137,89
19+
€130,15
29+
€128,60
39+
€127,05
49+
€125,50
74+
€123,95
99+
€116,20
199+
€114,65
249+
€113,10
499+
€111,55
999+
€108,45
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M70x1.5
Technical
Technical
| G | M70x1.5 |
|---|---|
| d2 | 95mm |
| d3 | 86mm |
| d4 | 72mm |
| B | 26mm |
| J1 | 85mm |
| J2 | 14mm |
| N1 | 5.3mm |
| N2 | 8mm |
| Axial load capacity | 490 kN |
| Loosening torque | 285 Nm |
| Weight | 0.62 kg |
| Spanner | B95-100 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA14 |
