SKU: KMTA15-SKF

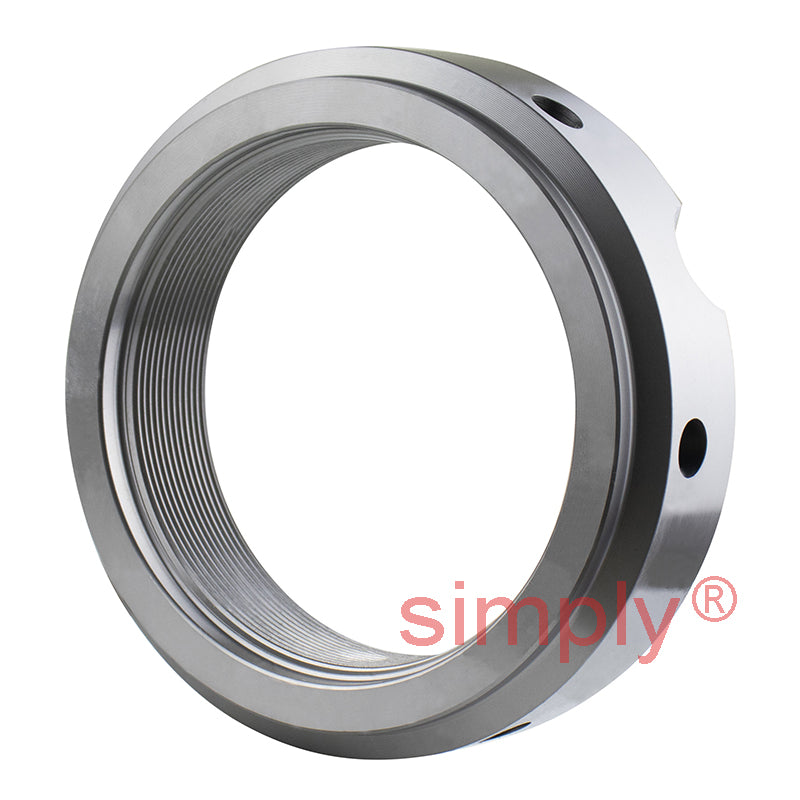

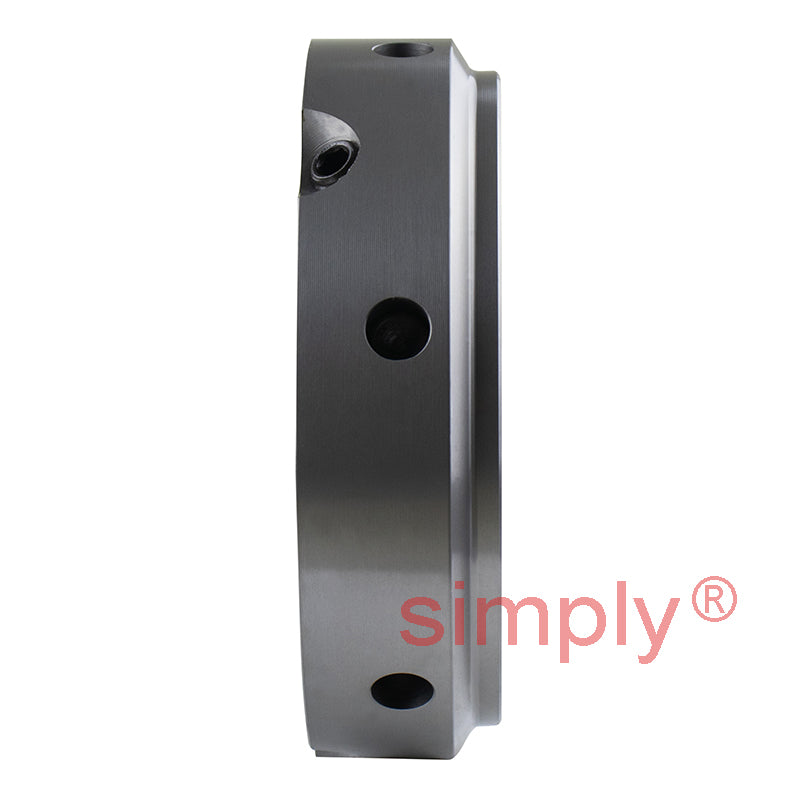

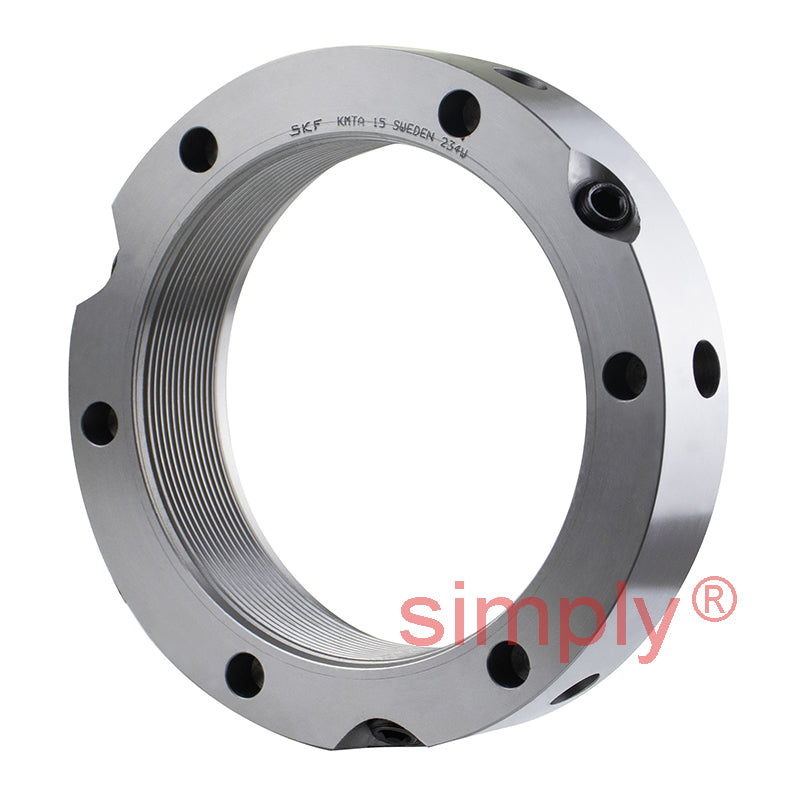

SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
SKF KMTA15 Precision Locking Nut with Locking Pins M75x1.5mm
Regular price
€186,23
ex VAT
Regular price
Sale price
€186,23
ex VAT
In stock
Price Break
10+
€165,74
19+
€156,43
29+
€154,57
39+
€152,71
49+
€150,85
74+
€148,98
99+
€139,67
199+
€137,81
249+
€135,95
499+
€134,09
999+
€130,36
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x1.5
Technical
Technical
| G | M75x1.5 |
|---|---|
| d2 | 100mm |
| d3 | 91mm |
| d4 | 77mm |
| B | 26mm |
| J1 | 88mm |
| J2 | 13mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 520 kN |
| Loosening torque | 305 Nm |
| Weight | 0.66 kg |
| Spanner | B95-100 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA15 |
