SKU: KMTA18-SKF

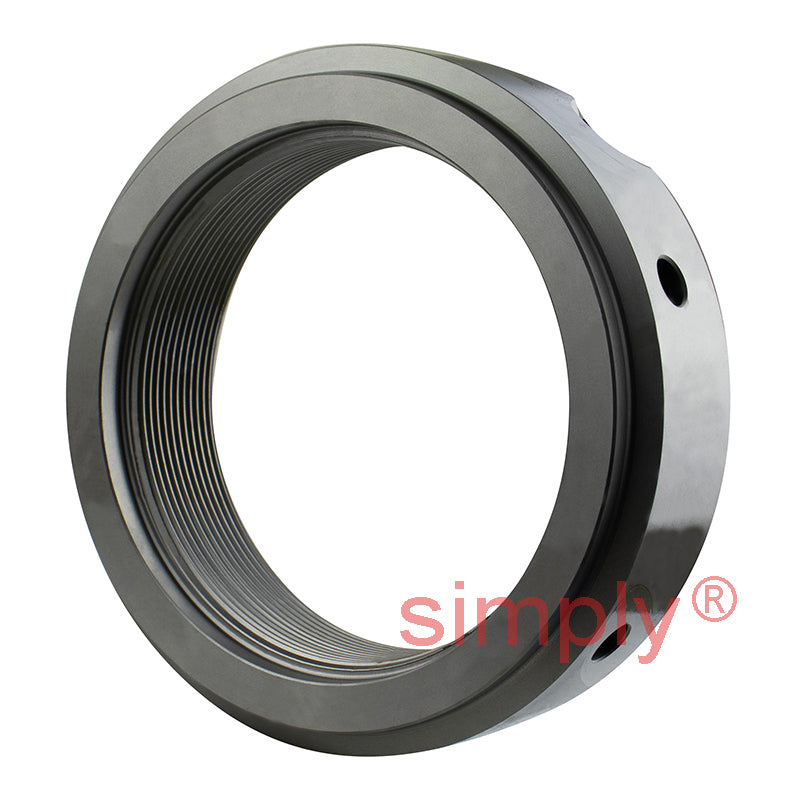

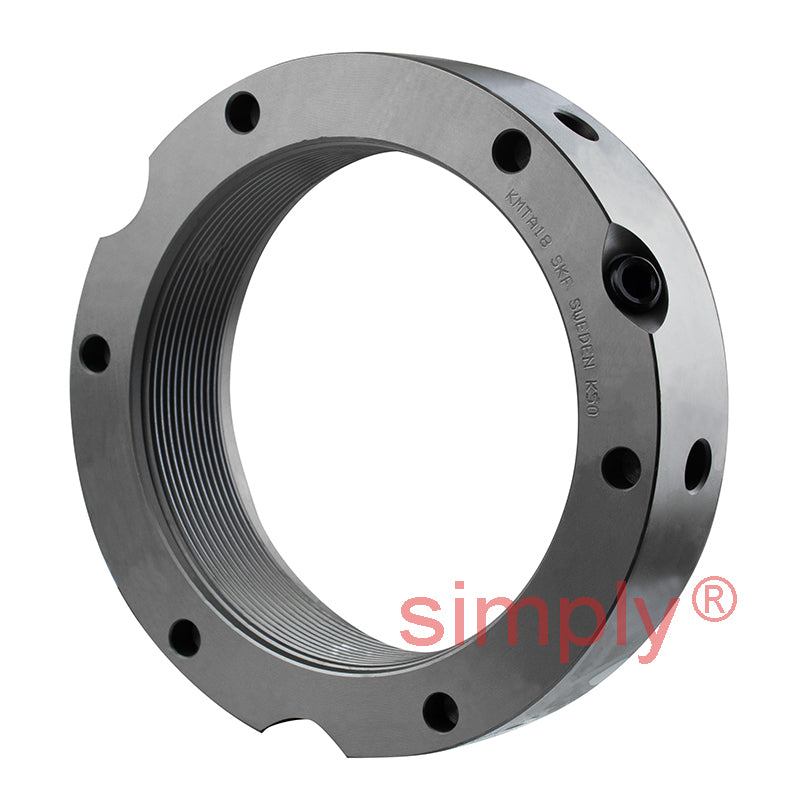

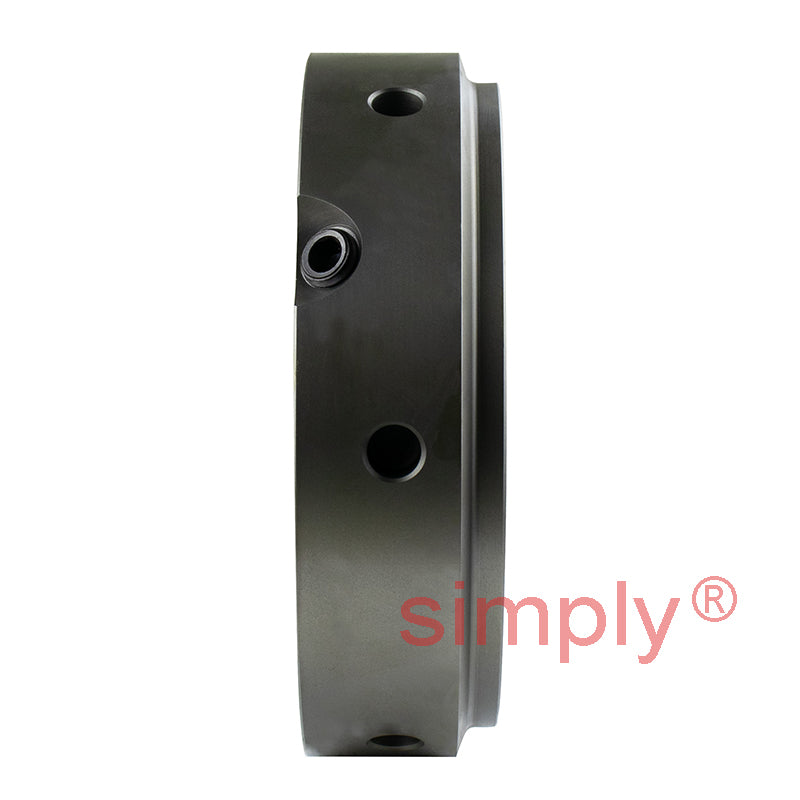

SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
SKF KMTA18 Precision Locking Nut with Locking Pins M90x2mm
Regular price
€230,95
ex VAT
Regular price
Sale price
€230,95
ex VAT
In stock
Price Break
10+
€175,68
19+
€165,81
29+
€163,83
39+
€161,86
49+
€159,89
74+
€157,91
99+
€148,04
199+
€146,07
249+
€144,10
499+
€142,12
999+
€138,17
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M90x2
Technical
Technical
| G | M90x2 |
|---|---|
| d2 | 120mm |
| d3 | 110mm |
| d4 | 93mm |
| B | 32mm |
| J1 | 108mm |
| J2 | 17mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 680 kN |
| Loosening torque | 720 Nm |
| Weight | 1.2 kg |
| Spanner | B120-130 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA18 |
