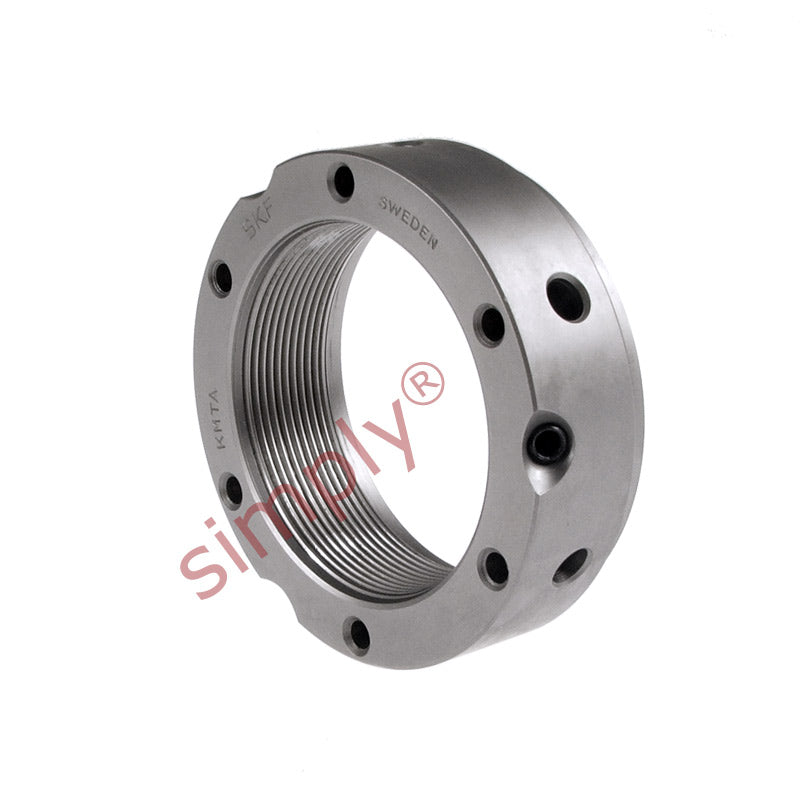

SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
SKF KMTA5 Precision Locking Nut with Locking Pins M25x1.5mm
Regular price
€76,95
ex VAT
Regular price
Sale price
€76,95
ex VAT
In stock
Price Break
10+
€58,51
19+
€55,22
29+
€54,56
39+
€53,90
49+
€53,25
74+
€52,59
99+
€49,30
199+
€48,64
249+
€47,99
499+
€47,33
999+
€46,02
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M25x1.5
Technical
Technical
| G | M25x1.5 |
|---|---|
| d2 | 42mm |
| d3 | 35mm |
| d4 | 26mm |
| B | 20mm |
| J1 | 32.5mm |
| J2 | 11mm |
| N1 | 4.3mm |
| N2 | 4mm |
| Axial load capacity | 130 kN |
| Loosening torque | 45 Nm |
| Weight | 0.13 kg |
| Spanner | B40-42 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA5 |
