SKU: KMTA7-SKF

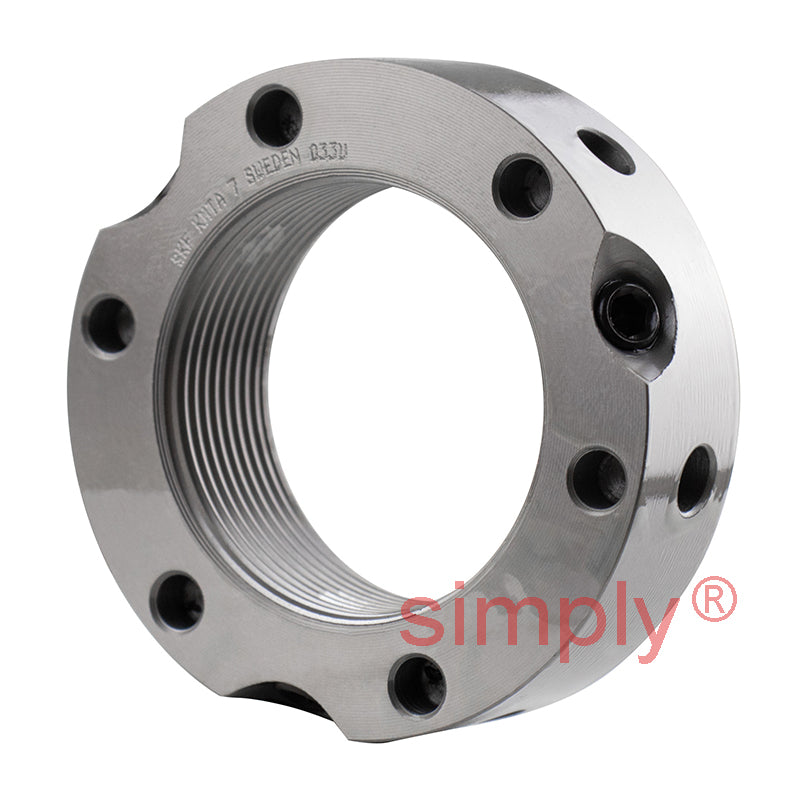

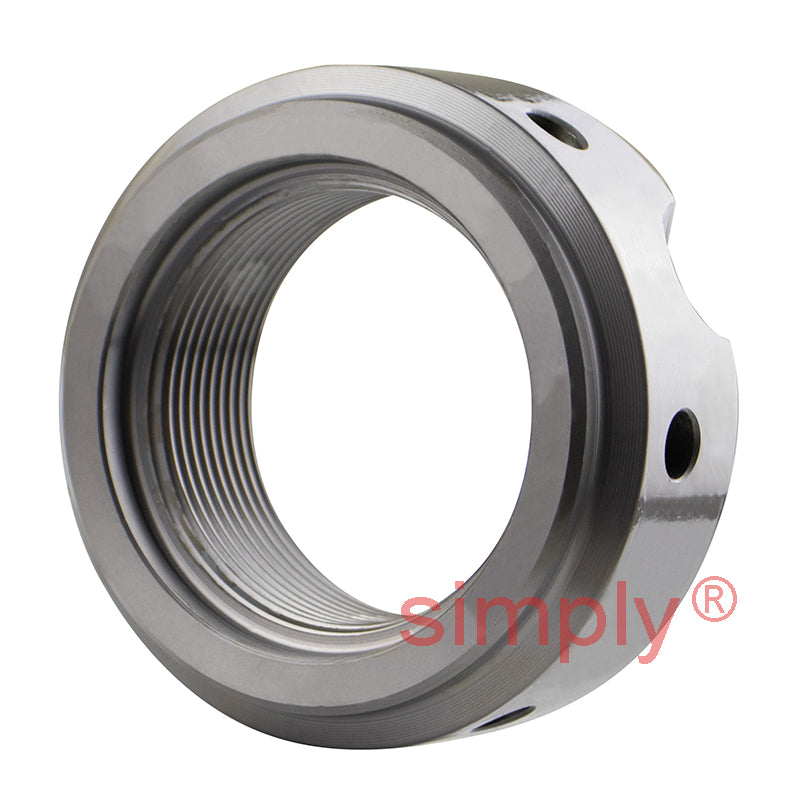

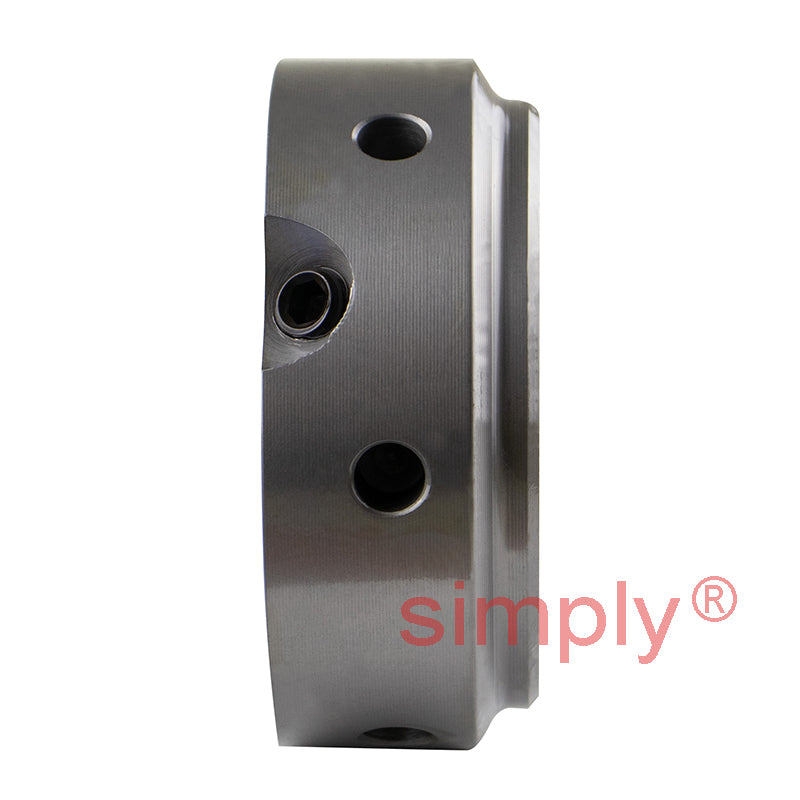

SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm
SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm
Regular price
€88,95
ex VAT
Regular price
Sale price
€88,95
ex VAT
In stock
Price Break
10+
€67,42
19+
€63,63
29+
€62,87
39+
€62,12
49+
€61,36
74+
€60,60
99+
€56,81
199+
€56,06
249+
€55,30
499+
€54,54
999+
€53,03
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| G | M35x1.5 |
|---|---|
| d2 | 53mm |
| d3 | 47mm |
| d4 | 38mm |
| B | 20mm |
| J1 | 45.5mm |
| J2 | 11mm |
| N1 | 4.3mm |
| N2 | 5mm |
| Axial load capacity | 190 kN |
| Loosening torque | 65 Nm |
| Weight | 0.19 kg |
| Spanner | B52-55 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA7 |
