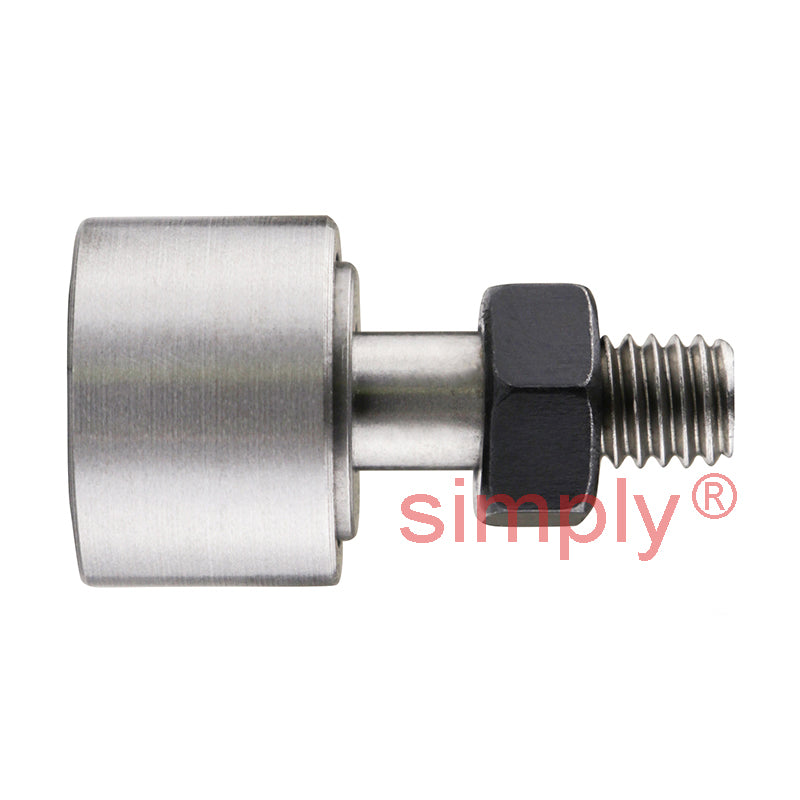

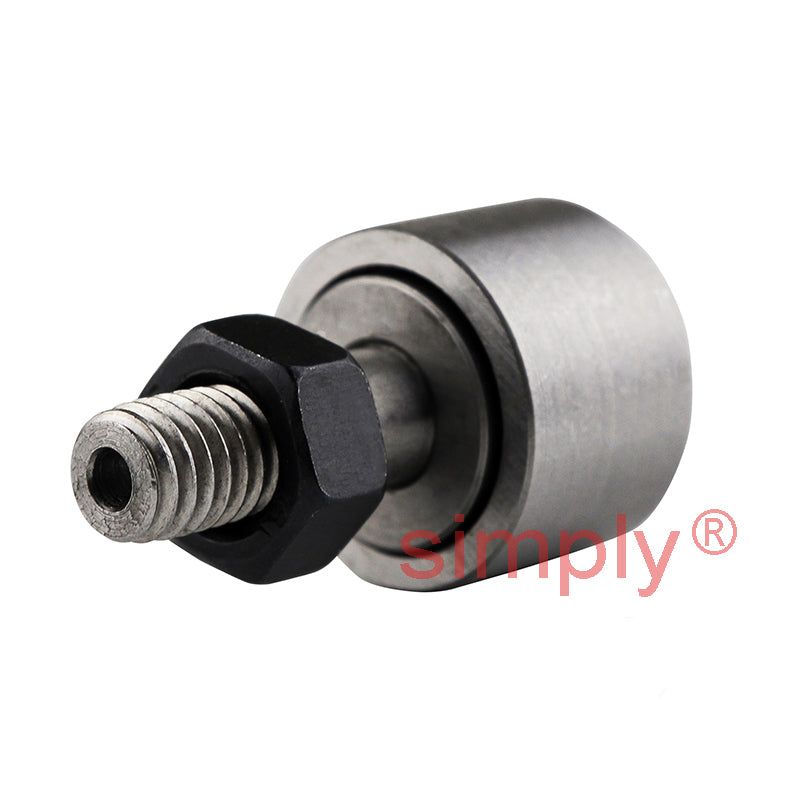

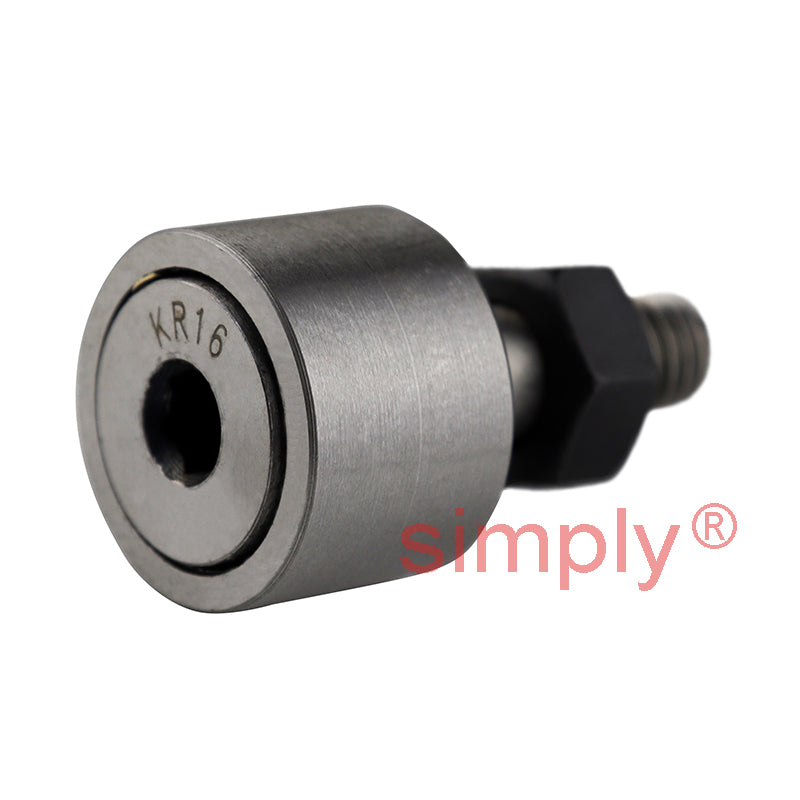

Budget KR16 Crowned Cam Follower 16x11x6 M6 Thread
Budget KR16 Crowned Cam Follower 16x11x6 M6 Thread
Regular price
€9,52
ex VAT
Regular price
Sale price
€9,52
ex VAT
In stock
Price Break
10+
€8,47
19+
€8,00
29+
€7,90
39+
€7,81
49+
€7,71
74+
€7,62
99+
€7,14
199+
€7,04
249+
€6,95
499+
€6,85
999+
€6,66
Couldn't load pickup availability
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 16mm
- Width:
- 11mm
- Pitch:
- M6
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6 |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
