SKU: KR16PP-MB

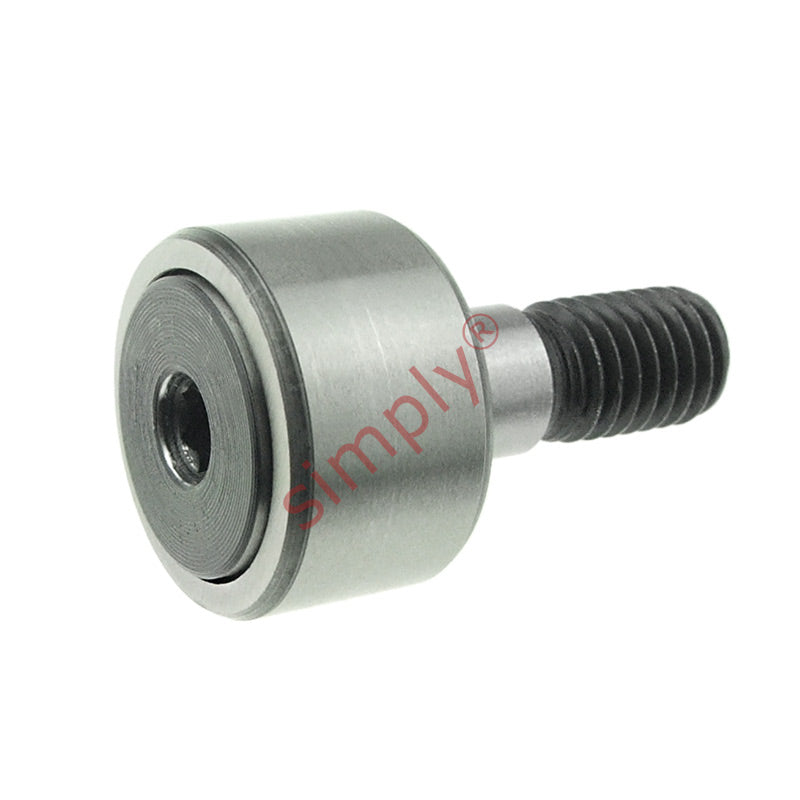

Major Brand KR16PP Contact Sealed Crowned Cam Follower 16x11x6 M6 Thread
Major Brand KR16PP Contact Sealed Crowned Cam Follower 16x11x6 M6 Thread
Regular price
€24,95
ex VAT
Regular price
Sale price
€24,95
ex VAT
In stock
Price Break
10+
€18,40
19+
€17,36
29+
€17,16
39+
€16,95
49+
€16,74
74+
€16,54
99+
€15,50
199+
€15,30
249+
€15,09
499+
€14,88
999+
€14,47
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 16mm
- Width:
- 11mm
- Pitch:
- M6
Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12mm |
| G | M6mm |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 18 g |
