SKU: KR19-MB

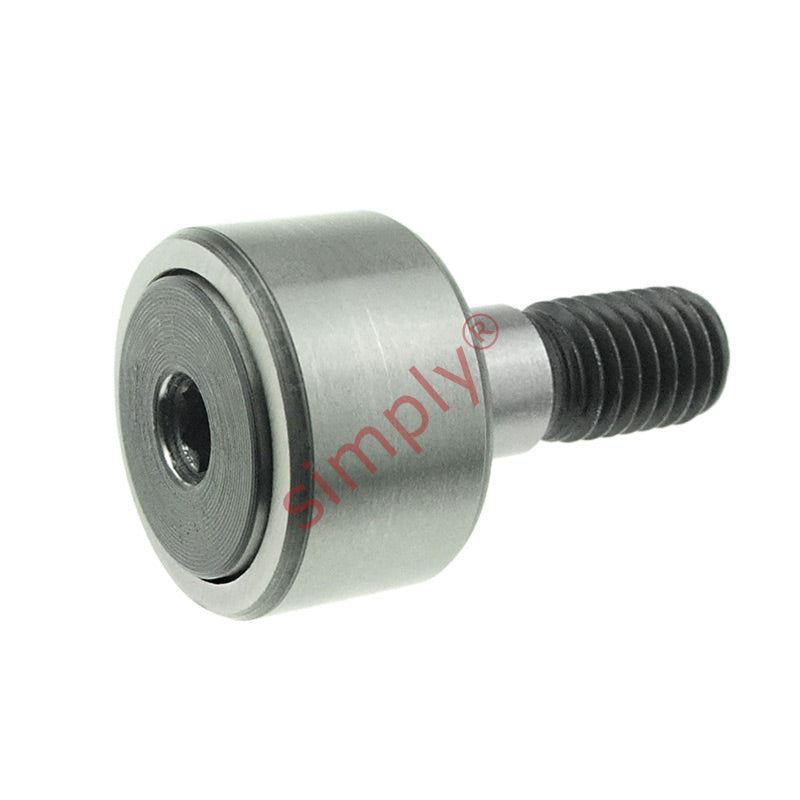

Major Brand KR19 Crowned Cam Follower 19x11x8 M8 Thread

Name: Major Brand KR19 Crowned Cam Follower 19x11x8 M8 Thread
Brand: Major Brand
SKU: KR19-MB
Price: 37.95 EUR
Availability: InStock

€37,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €28,31

19+ €26,72

29+ €26,40

39+ €26,09

49+ €25,77

74+ €25,45

99+ €23,86

199+ €23,54

249+ €23,22

499+ €22,90

999+ €22,27

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.

Brand / Quality:: Major Brand - High Quality
Outside Diameter:: 19mm
Width:: 11mm
Pitch:: M8

Technical

D	19mm
C	11mm
d (Stud Diameter)	8mm
B	32mm
B1	20mm
C1	0.6mm
d1	15mm
G	M8mm
G1	10mm
M	4mm
r min	0.15mm
Dynamic load	3470 N
Static load	3800 N
Fatigue load limit Pu	415 N
Radial dynamic load	3800 N
Radial static load	5500 N
Speed rating	11000 rpm
Weight	29 g
