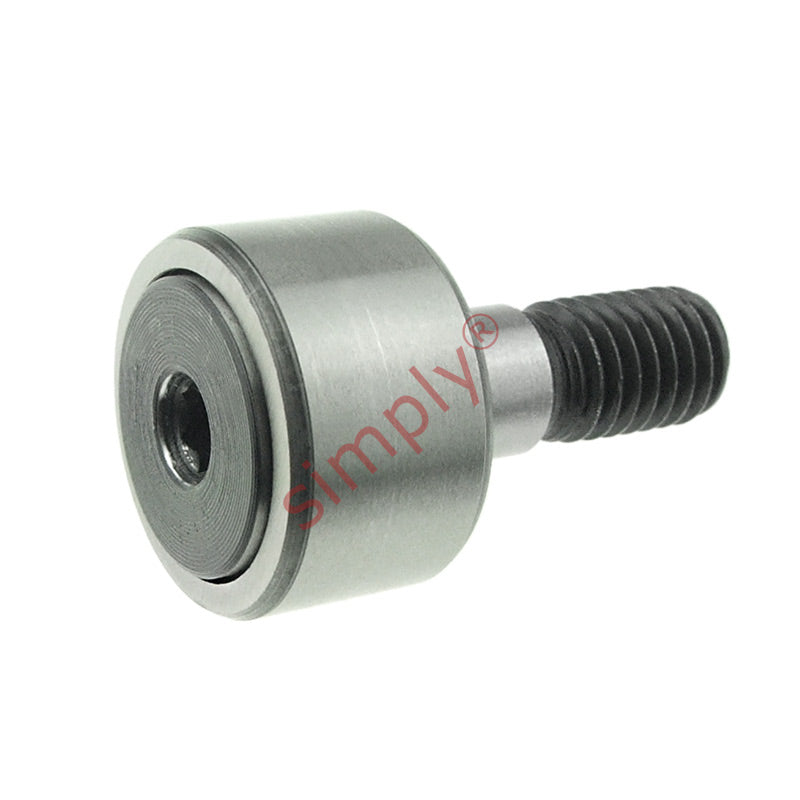

Major Brand KR26B Crowned Cam Follower 26x12x10 M10x1 Thread

Name: Major Brand KR26B Crowned Cam Follower 26x12x10 M10x1 Thread
Brand: Major Brand
SKU: KR26B-MB
Price: 40.95 EUR
Availability: InStock

€40,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €30,87

19+ €29,14

29+ €28,79

39+ €28,45

49+ €28,10

74+ €27,75

99+ €26,02

199+ €25,67

249+ €25,32

499+ €24,98

999+ €24,28

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer.
Benefits: High load, shock resistant.

Brand / Quality:: Major Brand - High Quality
Outside Diameter:: 26mm
Width:: 12mm
Pitch:: M10x1

Technical

D	26mm
C	12mm
d(Stud Diameter)	10mm
B	36mm
B1	23mm
C1	0.6mm
d1	17.5mm
G	M10x1
G1	12mm
r min	0.3mm
SW	5mm
Dynamic load	4840 N
Static load	6000 N
Fatigue load limit Pu	655 N
Radial dynamic load	9300 N
Radial static load	13200 N
Speed rating	8000 rpm
Weight	59 g
