SKU: KR32-MB
Major Brand KR32 Crowned Cam Follower 32x14x12 M12x1.5 Thread
Major Brand KR32 Crowned Cam Follower 32x14x12 M12x1.5 Thread
Regular price
€44,95
ex VAT
Regular price
Sale price
€44,95
ex VAT
In stock
Price Break
10+
€33,78
19+
€31,89
29+
€31,51
39+
€31,13
49+
€30,75
74+
€30,37
99+
€28,47
199+
€28,09
249+
€27,71
499+
€27,33
999+
€26,57
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 32mm
- Width:
- 14mm
- Pitch:
- M12x1.5

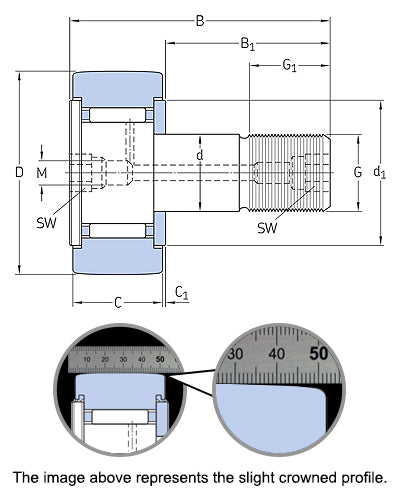

Technical
Technical
| D | 32mm |
|---|---|
| C | 14mm |
| d(Stud Diameter) | 12mm |
| B | 40mm |
| B1 | 25mm |
| B2 | 6mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| M | 6mm |
| M1 | 3mm |
| r min | 0.6mm |
| Dynamic load | 6710 N |
| Static load | 8500 N |
| Fatigue load limit Pu | 950 N |
| Radial dynamic load | 10600 N |
| Radial static load | 15000 N |
| Speed rating | 5500 rpm |
| Weight | 98 g |
