SKU: KR52PPA-EU

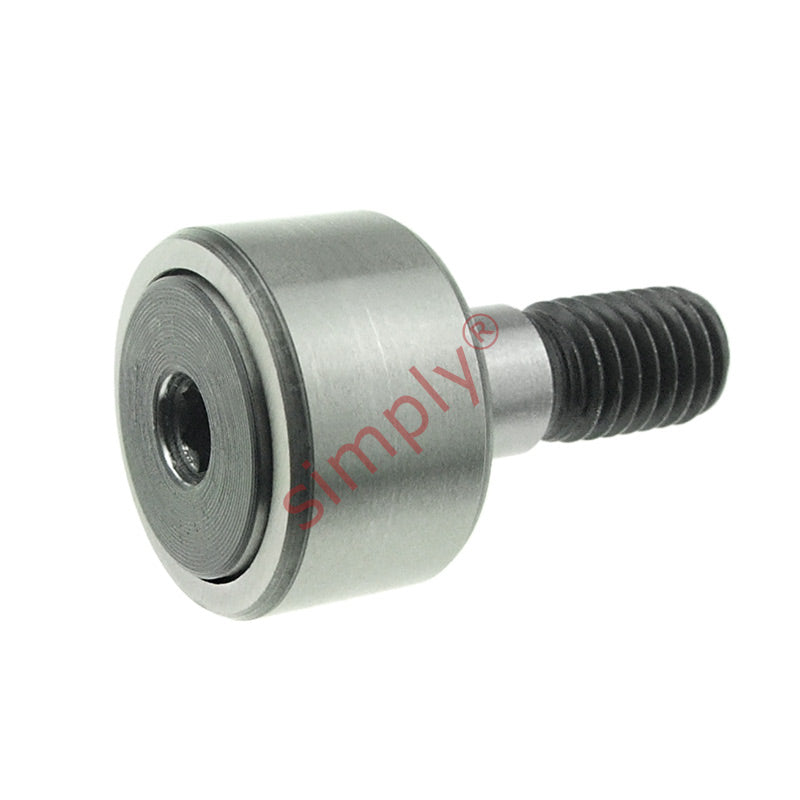

Budget KR52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread

Name: Budget KR52PPA Contact Sealed Crowned Cam Follower 52x24x20 M20x1.5 Thread
Brand: Gen
SKU: KR52PPA-EU
Price: 23.95 EUR
Availability: InStock

€23,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €17,91

19+ €16,90

29+ €16,70

39+ €16,50

49+ €16,30

74+ €16,10

99+ €15,09

199+ €14,89

249+ €14,69

499+ €14,49

999+ €14,08

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

Brand / Quality:: EU Budget - Economy Quality
Outside Diameter:: 52mm
Width:: 24mm
Pitch:: M20x1.5

Technical

D	52mm
C	24mm
d (Stud Diameter)	20mm
B	66mm
B1	40.5mm
B2	9mm
C1	0.8mm
d1	36.5mm
G	M20x1.5
G1	21mm
M1	4mm
r min	1mm
SW	10mm
Dynamic load	15700 N
Static load	27000 N
Fatigue load limit Pu	3200 N
Radial dynamic load	36000 N
Radial static load	51000 N
Speed rating	2400 rpm
Weight	450 g
