SKU: KRE19PPA-EU

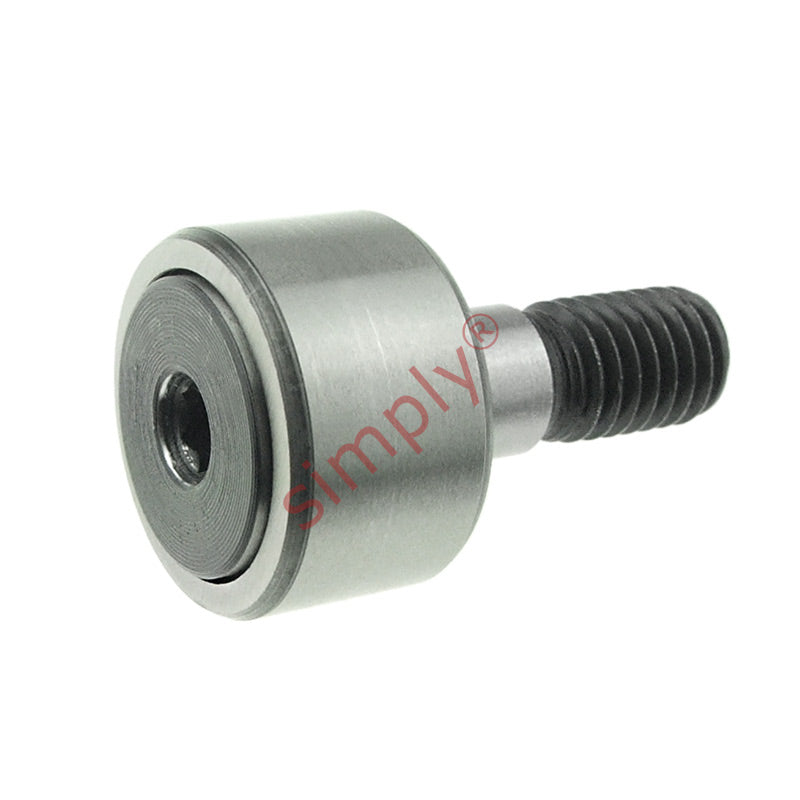

Budget KRE19PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 19x11x8 M8 Thread
Budget KRE19PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 19x11x8 M8 Thread
Regular price
€9,62
ex VAT
Regular price
Sale price
€9,62
ex VAT
In stock
Price Break
10+
€8,56
19+
€8,08
29+
€7,98
39+
€7,89
49+
€7,79
74+
€7,70
99+
€7,22
199+
€7,12
249+
€7,02
499+
€6,93
999+
€6,73
Couldn't load pickup availability
Description
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 11mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8 |
| G1 | 10mm |
| M | 4mm |
| r min | 0.15mm |
| Eccentric stud c | 0.5mm |
| B3 | 9mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 32 g |
