SKU: LR5205KDDU-INA

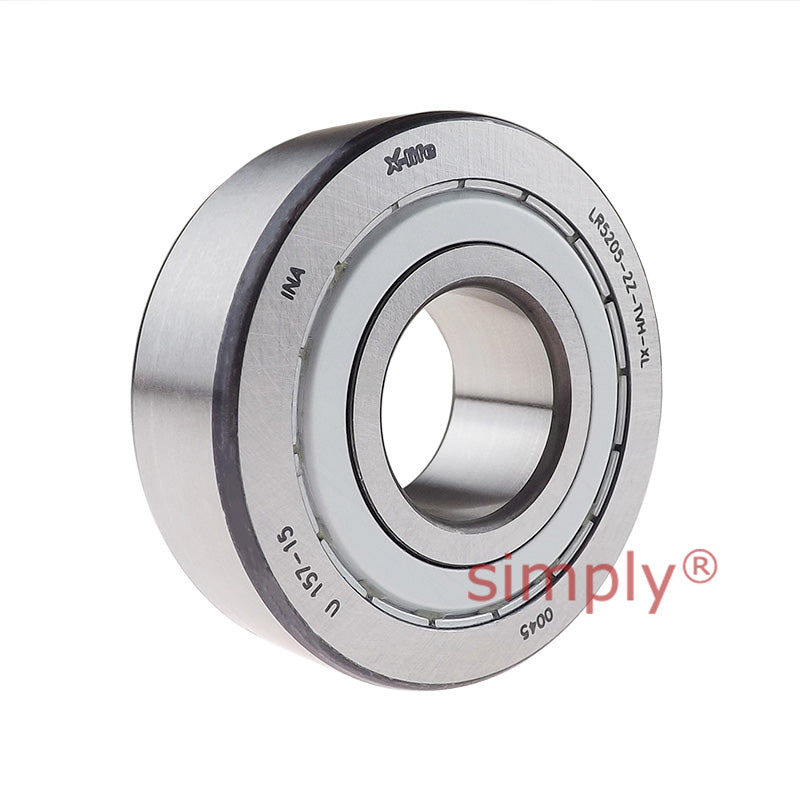

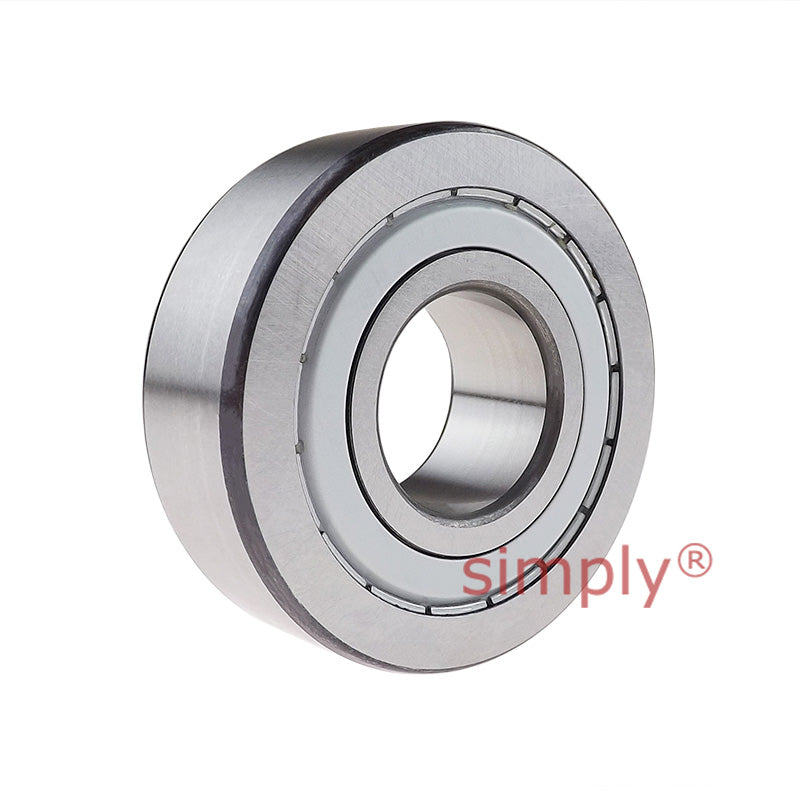

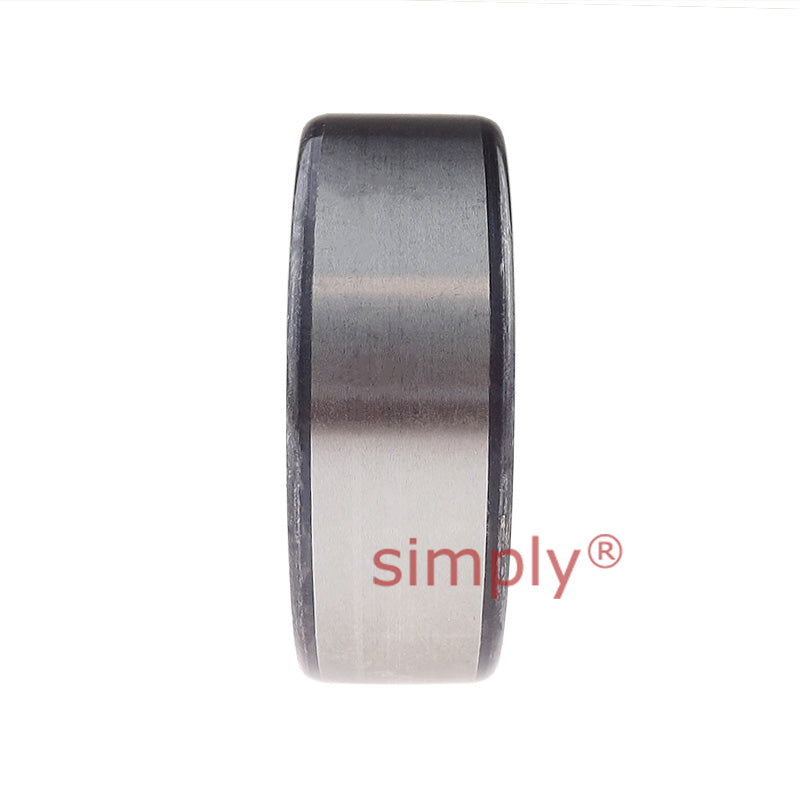

INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm
INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm
Regular price
€72,95
ex VAT
Regular price
Sale price
€72,95
ex VAT
Equivalent to: LR5205-2Z-TVH-XL,LB3205B-2ZRSTNG,305805C-2Z
In stock
Price Break
10+
€55,24
19+
€52,14
29+
€51,52
39+
€50,90
49+
€50,28
74+
€49,66
99+
€46,55
199+
€45,93
249+
€45,31
499+
€44,69
999+
€43,45
Description
Description
Metal Shielded Track Roller Bearing with a Spherical Outer:This range of self-retaining track roller bearings have a crowned outer raceaways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This KDDU range has metallic shields on both sides giving radial sealing action.
Equivalent: LR5205-2Z-TVH-XL,LB3205B-2ZRSTNG,305805C-2Z
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 20.6mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| D (Outside Diameter) | 62mm |
|---|---|
| d (Bore Diameter) | 25mm |
| C (Width) | 20.6mm |
| C<sub>r w</sub> (Basic dynamic load rating, radial) | 19,700 N |
| C<sub>0r w</sub> (Basic static load rating, radial) | 15,900 N |
| C<sub>ur w</sub> (Fatigue load limit, radial) | 820 N |
| n<sub>D G</sub> (Speed on permanent grease lubrication) | 6,500 1/min |
| F<sub>r per</sub> (Permissible dynamic load outer ring, radial) | 15,900 N |
| d<sub>2</sub> (Diameter of thrust washer) | 34.2mm |
| r<sub>min</sub> (Minimum chamfer dimension) | 1 mm |
| R (Radius of outer ring outside profile) | 500 mm |
| Weight | 0.34 kg |
