SKU: LS100135-EU

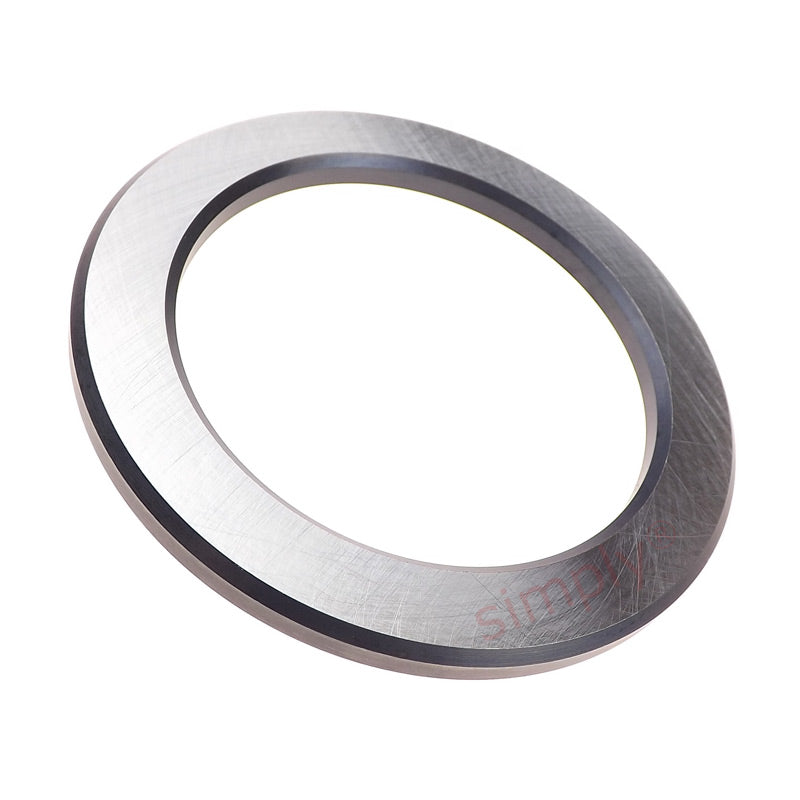

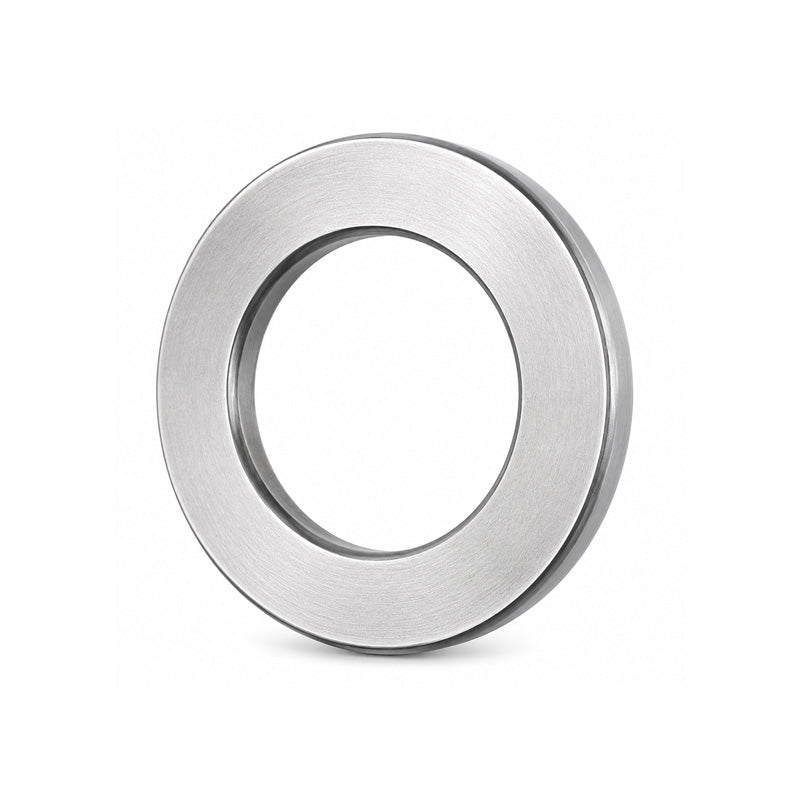

LS100135 Budget Raceway Washer Series LS 100x135x7mm
LS100135 Budget Raceway Washer Series LS 100x135x7mm
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
In stock
Price Break
10+
€13,35
19+
€12,60
29+
€12,45
39+
€12,30
49+
€12,15
74+
€12,00
99+
€11,25
199+
€11,10
249+
€10,95
499+
€10,80
999+
€10,50
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 135mm
- Width:
- 7mm
Technical
Technical
| d | 100mm |
|---|---|
| d1 | 135mm |
| D | 135mm |
| D1 | 102mm |
| B | 7mm |
| r1r2 | 1mm |
| Weight | 350 g |
