SKU: LS3047-MB

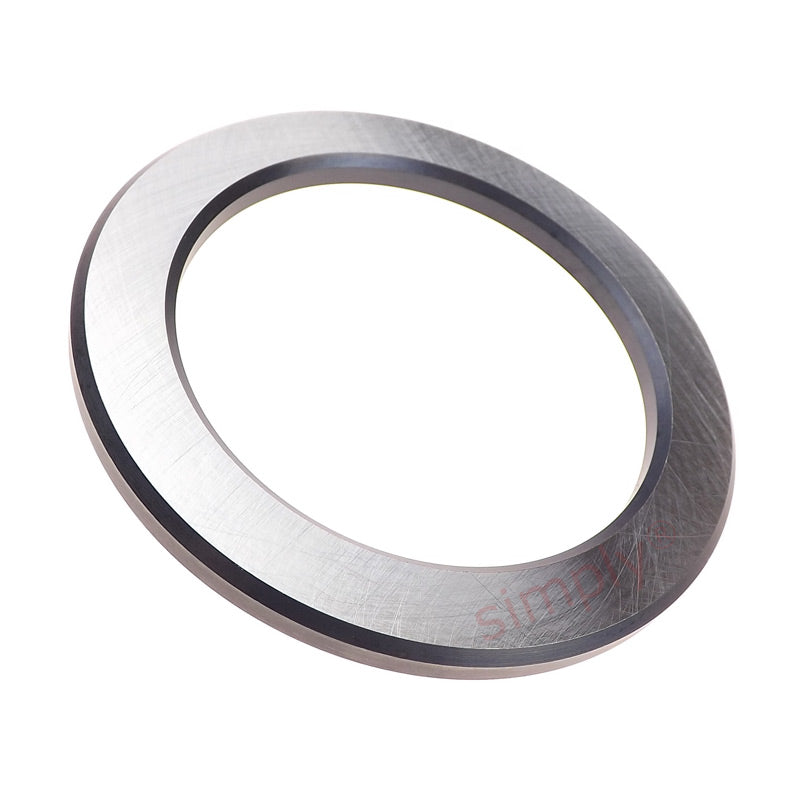

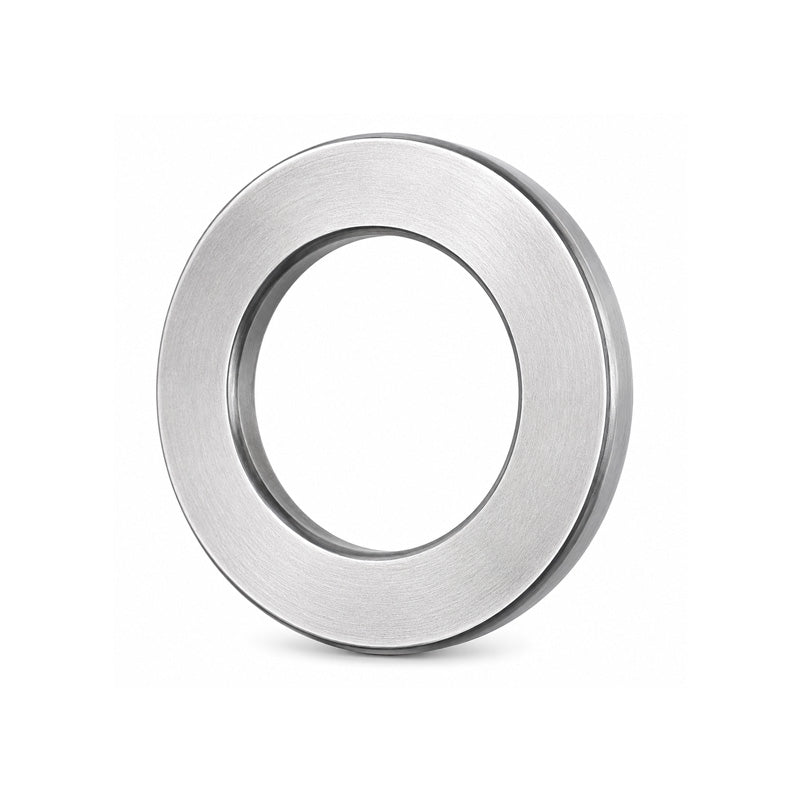

Major Brand LS3047 Raceway Washer Series LS 30x47x3mm
Major Brand LS3047 Raceway Washer Series LS 30x47x3mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
10+
€4,73
19+
€4,46
29+
€4,41
39+
€4,35
49+
€4,30
74+
€4,25
99+
€3,98
199+
€3,93
249+
€3,88
499+
€3,82
999+
€3,72
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 3mm
Technical
Technical
| d | 30mm |
|---|---|
| d1 | 47mm |
| D | 47mm |
| D1 | 32mm |
| B | 3mm |
| r1r2 | 0.6mm |
| Weight | 22 g |
