SKU: M-UCFA206D1-NTN

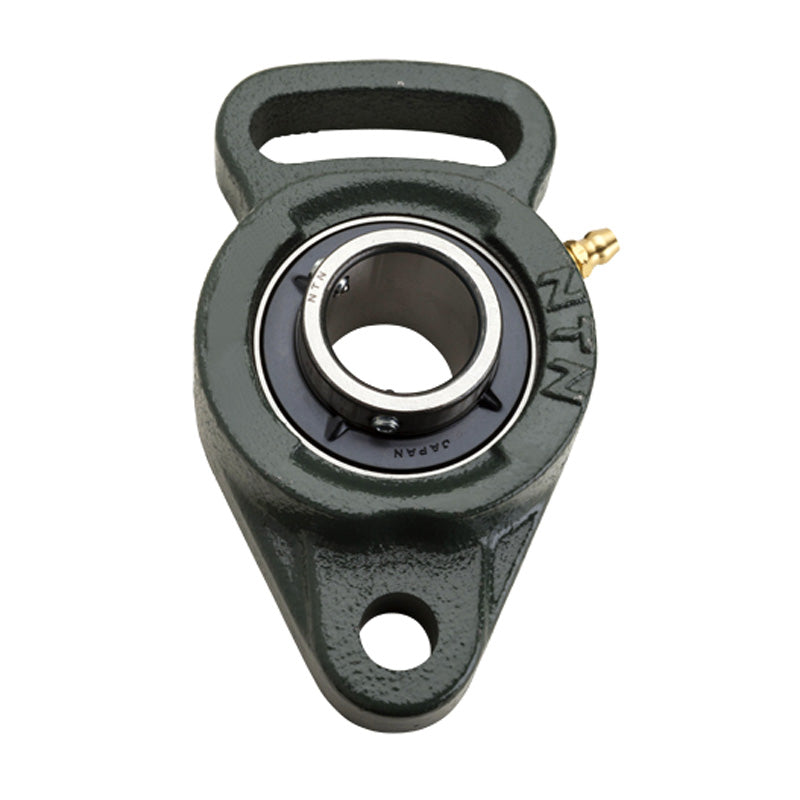

NTN M-UCFA206D1 Metric Cast Iron Adjustable Flange Unit with 30mm Insert - Allow 2-3 Days
NTN M-UCFA206D1 Metric Cast Iron Adjustable Flange Unit with 30mm Insert - Allow 2-3 Days
Regular price
€46,38
ex VAT
Regular price
Sale price
€46,38
ex VAT
In stock
Price Break
5+
€45,92
10+
€44,06
20+
€43,13
50+
€41,74
100+
€40,81
500+
€38,50
1000+
€32,47
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFA
- Bolt Hole Centres:
- 115mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 141mm |
| J | 115mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 14mm |
| A | 31mm |
| N | 13mm |
| N<sub>1</sub> | 53mm |
| L | 80mm |
| L<sub>1</sub> | 68mm |
| A<sub>0</sub> | 40.2mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M10 |
| Mass | 0.9 kg |
