SKU: M-UCHB209D1-NTN

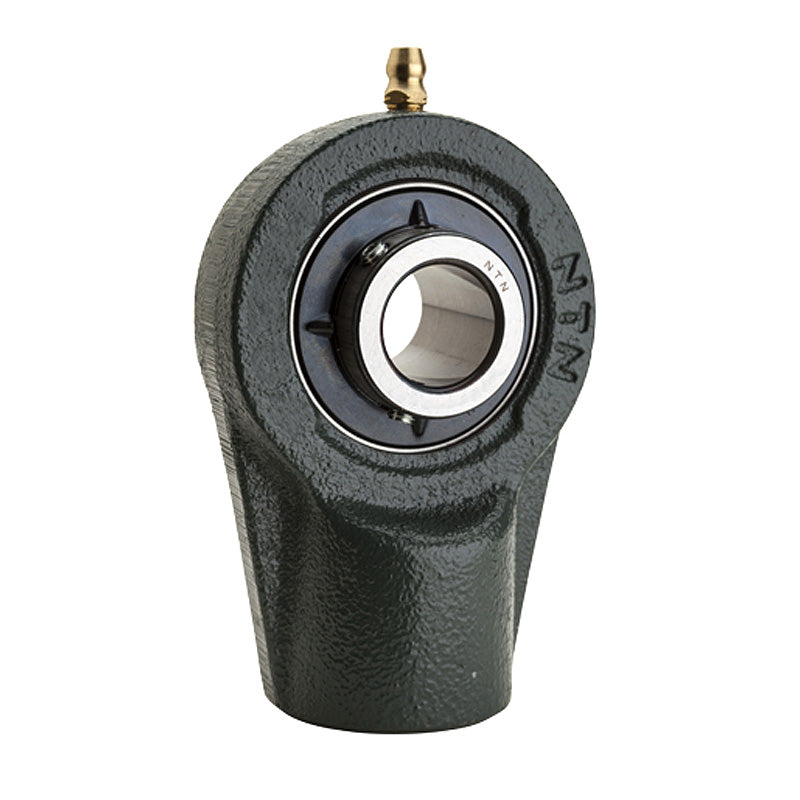

NTN M-UCHB209D1 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
NTN M-UCHB209D1 Metric Cast Iron Hanger Bearing Unit with 45mm Bore Insert - Allow 2-3 Days
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
In stock
Price Break
3+
€65,78
4+
€63,12
9+
€61,79
19+
€59,80
49+
€58,47
99+
€55,15
499+
€46,51
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| L | 108mm |
| H<sub>1</sub> | 136mm |
| c | 5mm |
| A | 35mm |
| H | 82mm |
| N | RP1 |
| D | 48mm |
| j | 21mm |
| B | 49.2mm |
| S | 19mm |
| Mass | 1.8 kg |
